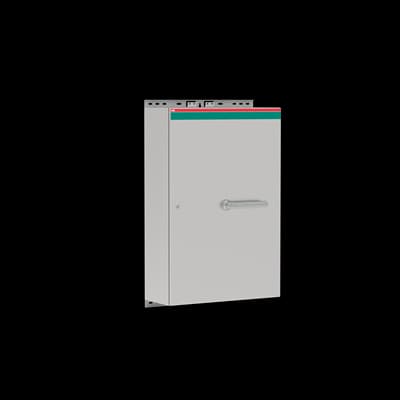

Product Model
OT630ERRR6TZ
Key Features
- 1High Power Rating: 315 kW at 400V AC-23A.
- 2Durable Construction: Haponkestävä (acid-resistant) steel enclosure.
- 3IP65 Protection: Ensures high protection against dust and water.
- 4Robust Design: Rosterivääntimellä (rocker-type) handle for easy operation.
- 5Versatile Use: Suitable for both indoor and outdoor applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
| Product Net Width | 800 mm | Product Net Height | 1000 mm |
| Product Net Depth / Length | 230 mm | Product Net Weight | 52.8 kg |
| Cable Entry Position | Top/Bottom | Cable Outlets Per Side | 8xring-flange+ø25.5mm / 8xring-flange+ø25.5mm |
| Connecting Capacity Main Circuit | Hole Diameter 12 mm Screw Clamp / PE Terminal 16pc,25 ... 120 mm² | Conventional Thermal Current (Ithe) | Fully Enclosed 570 A |
| Degree of Protection | acc. to IEC 60529 IP65 | Enclosure Material | Stainless steel |
| Handle Color | Stainless Steel | Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 | Maximum Mounted Auxiliary Contacts | 4 NO, 4 NC |
| Mounted Auxiliary Contacts | 4 NO, 2 NC | Number of Auxiliary Contacts NC | 2 |
| Number of Auxiliary Contacts NO | 4 | Number of Poles | 6P |
| Pollution Degree | 3 | Power Loss | at Rated Operating Conditions per Pole 25 W |
| Rated Conditional Short-Circuit Current (Inc) | 90 kA | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 570 A (500 V) 570 A (690 V) 570 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 570 A (500 V) 570 A (690 V) 570 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 315 kW (500 V) 400 kW (690 V) 560 kW | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 80 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
| Recommended Screw Driver | Main Circuit M12 | Special Functions | EMC |
| Standards | IEC 60947-1, -3 | Tightening Torque | Main Circuit 75 N·m |
| Recommended Screw Driver | Main Circuit M12 | Tightening Torque | Main Circuit 75 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch | eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | E-Number (Finland) | 3642127 |
| Manufacturer ID | 1SCA102326R1001 |
Specifications may be subject to change without notice
