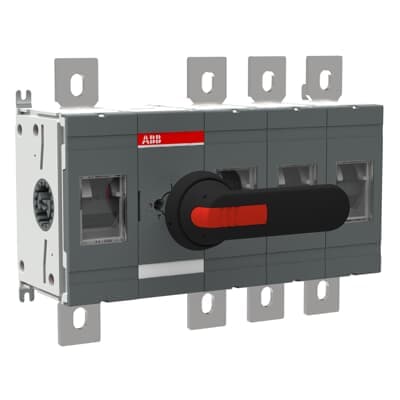

Product Model
OT630E13P
Key Features
- 14-pole, front operated switch-disconnector with black IP65 handle and shaft.
- 2Includes terminal bolt kit for secure connections.
- 3Rated for high operational currents: 630 A at 380-415 V, 500 V, and 690 V.
- 4Meets IEC/EN 60664-1 standards for insulation voltage and impulse withstand voltage.
- 5Compliant with EU RoHS and REACH directives, ensuring environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Environmental Information | 1SCC301232D0201 |
| Pollution Degree | 3 | Product Net Width | 331 mm |
| Product Net Height | 250 mm | Product Net Depth / Length | 140 mm |
| Product Net Weight | 8 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 630 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 630 A | Degree of Protection | Front IP00 |
| Distance Between Phases | Standard | Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function | Handle Color | Black |
| Handle Type | Handle and shaft included | Lock Type | Yes |
| Mechanical Durability | 10000 | Mounting Type | Base mounting |
| Number of Poles | 4P | Operating Mode | Front operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 25 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 200 kW (400 ... 415 V) 355 kW (500 V) 400 kW (690 V) 630 kW | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 80 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
| Special Functions | No | Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism Between the Poles 13 (Between the Poles) | Terminal Type | Lug terminals |
| Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA022823R4420 |
Specifications may be subject to change without notice
