Product Model

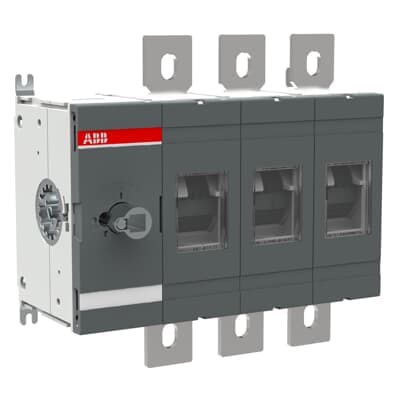

OT630E03
Key Features
- 1High Amperage Rating: 630A for robust power handling.
- 2Front Operated Non-Fusible: Easy operation with no fuses required.
- 3IP65 Enclosure: Durable and resistant to dust and water.
- 4Base Mounting: Versatile installation options for various settings.
- 5Lug Terminals: Secure and reliable terminal connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Environmental Information | 1SCC301232D0201 |
| Pollution Degree | 3 | Product Net Width | 266 mm |
| Product Net Height | 250 mm | Product Net Depth / Length | 140 mm |
| Product Net Weight | 6.1 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 630 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 630 A | Degree of Protection | Front IP00 |
| Distance Between Phases | Standard | Handle Type | Handle and shaft not included |
| Lock Type | No | Mechanical Durability | 10000 |
| Mounting Type | Base mounting | Number of Poles | 3P |
| Operating Mode | Front operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 25 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 630 A (500 V) 630 A (690 V) 630 A | Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 200 kW (400 ... 415 V) 355 kW (500 V) 400 kW (690 V) 630 kW |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 80 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA | Special Functions | No |
| Standards | IEC 60947-3 | Switches Operating Mechanism | Mechanism at the End of the Switch 03 (Left Side) |
| Terminal Type | Lug terminals | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
| Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA022775R3670 |
Specifications may be subject to change without notice
