Product Model

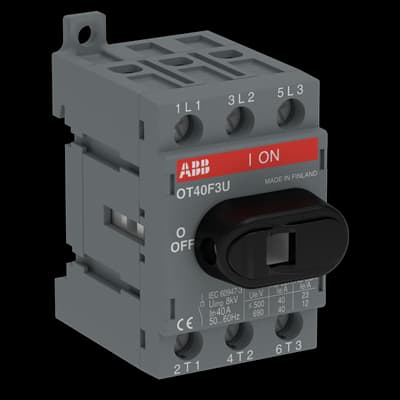

OT40F3U
Key Features
- 140A for reliable operation in demanding electrical systems.
- 2Supports up to 750VAC, suitable for various low-voltage applications.
- 3Measuring 68mm x 35mm x 56mm, ideal for space-constrained installations.
- 4Withstands up to 20,000 operating cycles, ensuring long-lasting performance.
- 5Meets IEC 60947-3, UL508, and CSA C22.2 No. 14 standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Environmental Information | 1SCC301262D0201 |
| Pollution Degree | 3 | Product Net Width | 35 mm |
| Product Net Height | 68 mm | Product Net Depth / Length | 56 mm |
| Product Net Weight | 0.095 kg | Cable Cross-Section | Cu 0.75 ... 10 mm² |
| Conventional Free-air Thermal Current (Ith) | Π= 40 °C 40 A | Conventional Thermal Current (Ithe) | Fully Enclosed 40 A |
| Degree of Protection | Front IP20 | Distance Between Phases | Standard |
| Handle Type | Knob Handle and shaft not included | Lock Type | No |
| Mechanical Durability | 20000 | Mounting Type | Base mounting |
| Number of Poles | 3P | Operating Mode | Front operated |
| Pollution Degree | 3 | Power Loss | at Rated Operating Conditions per Pole 1.6 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 40 A (500 V) 40 A (690 V) 40 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 40 A (500 V) 40 A (690 V) 40 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 23 A (500 V) 23 A (690 V) 12 A | Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 5.5 kW (400 ... 415 V) 11 kW (500 V) 11 kW (690 V) 11 kW |
| Rated Operational Voltage | Main Circuit 750 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 0.71 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 0.5 kA | Special Functions | No |
| Standards | IEC 60947-3 / UL 508 / CSA C22.2 No. 14 | Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals | Tightening Torque | acc. IEC 60947-1 0.8 N·m |
| Maximum Operating Voltage UL/CSA | 600 V | Ampere Rating | 40 A |
| Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 2 Hp (240 V AC) Single Phase 5 Hp (440 ... 480 V AC) Single Phase 10 Hp (550 ... 600 V AC) Single Phase 15 Hp (220 ... 240 V AC) Three Phase 10 Hp (440 ... 480 V AC) Three Phase 20 Hp (550 ... 600 V AC) Three Phase 25 Hp | Tightening Torque | acc. IEC 60947-1 0.8 N·m |
| Object Classification Code | Q | UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA104930R1001 |
