Product Model

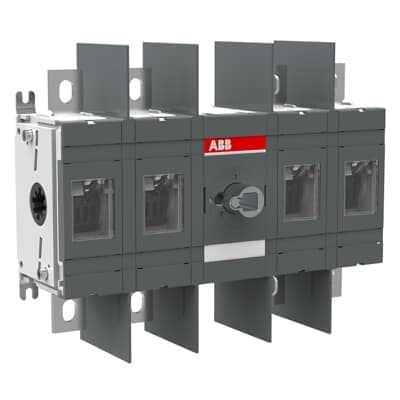

OT400U22-1000
Key Features
- 1Designed for reliability and efficiency in industrial settings.
- 2Compact size with dimensions of 4.72 in x 9.45 in x 12.2 in.
- 3Finger-proof and wielded contact protection for improved safety.
- 4Mountable in any position, including din rail, door, or base mount.
- 5Meets UL and CSA standards for maximum operational safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 280 mm | Product Net Height | 220 mm |
| Product Net Depth / Length | 105 mm | Product Net Weight | 3.8 kg |
| Number of Poles | 4P | Maximum Operating Voltage UL/CSA | 1000 V |
| Ampere Rating | 200 A | Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA159823R1001 |
Specifications may be subject to change without notice
