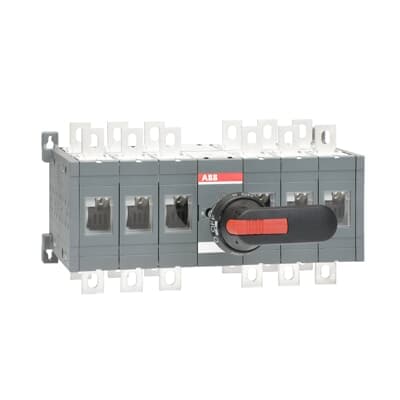

Product Model
OT400E33CP
Key Features
- 1High current rating: 400A for reliable power transfer.
- 2Durable construction: IP65 black plastic handle and shaft for long-lasting performance.
- 3Safety features: Door interlock in I- and II-positions, padlockable in the 0-position.
- 4Versatile operation: Top In - Bottom Out, Bottom In - Top Out switch mechanism.
- 5Compliance: Meets IEC60947-3 standards and CE declaration for safety assurance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Environmental Information | 1SCC303050D0201 |
| Pollution Degree | 3 | Product Net Width | 353 mm 13.9 in |
| Product Net Height | 185 mm 7.28 in | Product Net Depth / Length | 203 mm 7.99 in |
| Product Net Weight | 10.21 kg 22.51 lb | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 400 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 400 A | Degree of Protection | Front IP20 |
| Distance Between Phases | Standard | Handle Color | Black |
| Handle Type | Handle and shaft included | Mechanical Durability | 8000 cycle |
| Mounting Type | Base mounting | Number of Poles | 6P |
| Operating Mode | Front operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 10 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A | Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 400 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 400 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 220 kW (500 V) 280 kW (690 V) 400 kW |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kiloampere rms |
| Standards | IEC60947-3 | Switches Operating Mechanism | Mechanism Between the Poles 33 (Between the Poles) |
| Terminal Type | Screw Terminals | Terminal Width | 25 mm |
| Tightening Torque | acc. IEC 60947-1 30 ... 44 N·m | Transition Type | Open |
| Ampere Rating | 400 A | Tightening Torque | acc. IEC 60947-1 30 ... 44 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch | eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Finland) | 3601259 |
| Manufacturer ID | 1SCA118629R1001 |
Specifications may be subject to change without notice
