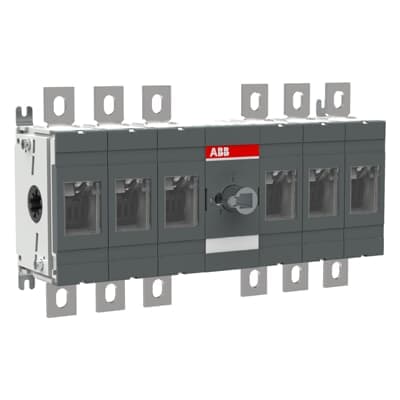

Product Model
OT400E33
Key Features
- 1High-quality switch-disconnector for demanding power distribution applications.
- 26 poles with a rated operational current of 400 A at 1000 VAC.
- 3Front-operated mechanism for easy operation and maintenance.
- 4Meets IEC standards for reliability and safety.
- 5Includes terminal bolt kit for secure connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Environmental Information | 1SCC301266D0201 |
| Pollution Degree | 3 | Product Net Width | 328 mm |
| Product Net Height | 185 mm | Product Net Depth / Length | 107 mm |
| Product Net Weight | 4.9 kg 10.7 lb | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 400 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 400 A | Degree of Protection | Front IP00 |
| Distance Between Phases | Standard | Handle Type | Handle and shaft not included |
| Lock Type | No | Mechanical Durability | 16000 |
| Mounting Type | Base mounting | Number of Poles | 6P |
| Operating Mode | Front operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 10 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A (1000 V) 400 A | Rated Operational Current DC-21B (Ie) | (1000 V) 400 A |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 65 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA | Special Functions | No |
| Standards | IEC 60947-3 | Switches Operating Mechanism | Mechanism Between the Poles 33 (Between the Poles) |
| Terminal Type | Lug terminals | Tightening Torque | acc. IEC 60947-1 30 ⦠44 N·m |
| Tightening Torque | acc. IEC 60947-1 30 ⦠44 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA103598R1001 |
Specifications may be subject to change without notice
