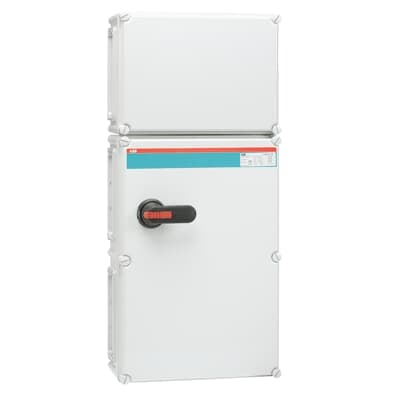

Product Model
OT400DFCC4BL
Key Features
- 1High-quality construction with IP65 protection for reliable performance in harsh environments.
- 24P poles and 400A maximum current for efficient and safe electrical switching.
- 3400kW power rating suitable for demanding industrial applications.
- 4Designed with safety in mind, including padlockable handles and gas pressure relief functions.
- 5Easy installation with screw mount design and comprehensive technical specifications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
| Product Net Width | 380 mm | Product Net Height | 840 mm |
| Product Net Depth / Length | 180 mm | Product Net Weight | 13.806 kg |
| Cable Entry Position | Top/Bottom | Cable Outlets Per Side | II-flange / II-flange |
| Connecting Capacity Main Circuit | Hole Diameter 10 mm Screw Clamp / PE Terminal 4pc,25 ... 120 mm² | Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
| Degree of Protection | acc. to IEC 60529 IP65 | Enclosure Material | Plastic |
| Handle Color | Black | Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK08 | Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC | Neutral Type | Switchable neutral |
| Number of Auxiliary Contacts NC | 0 | Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 4P | Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 10 W | Rated Conditional Short-Circuit Current (Inc) | 61.5 kA |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A (690 V) 400 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A (500 V) 400 A (690 V) 400 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 230 kW (500 V) 280 kW (690 V) 400 kW |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 65 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA | Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 44 N·m | Tightening Torque | Main Circuit 44 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch | eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Manufacturer ID | 1SCA104695R1001 |
Specifications may be subject to change without notice
