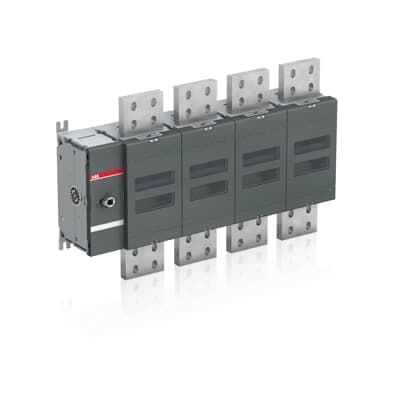

Product Model
OT4000E04
Key Features
- 1High-Performance Construction: Designed for demanding applications with a powerful construction and quick-make/quick-break operation.
- 2Robust Insulation: Meets IEC/EN 60664-1 standards with a 12 kV rated impulse withstand voltage and 1000 V rated insulation voltage.
- 3Efficient Power Handling: Handles up to 400 A at various voltages (380-415 V, 500 V, 690 V) with low power loss per pole (10 W).
- 4Mechanical Durability: Withstands 20,000 operation cycles and has a mechanical durability of 10,000 cycles when divided by two.
- 5Compliant with Safety Standards: Compliant with IEC 60947-1 and IEC 60947-3 standards, ensuring enhanced safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Environmental Information | 1SCC301269D0201 |
| Pollution Degree | 3 | Product Net Width | 654 mm |
| Product Net Height | 410 mm | Product Net Depth / Length | 146 mm |
| Product Net Weight | 47.5 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 3800 A |
| Degree of Protection | Front IP00 | Distance Between Phases | Standard |
| Fourth Pole Position | Right Side | Fourth Pole Type | Switched - Simultaneous Function |
| Handle Type | Handle and shaft not included | Lock Type | No |
| Mechanical Durability | 5000 | Mounting Type | Base mounting |
| Number of Poles | 4P | Operating Mode | Front operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 130 W | Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 3800 A |
| Rated Operational Current AC-22B (Ie) | (380 ... 415 V) 3800 A | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 176 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 80 kA |
| Special Functions | No | Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch 04 (Left Side) | Terminal Type | Lug terminals |
| Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Manufacturer ID | 1SCA124855R1001 |
Specifications may be subject to change without notice
