Product Model

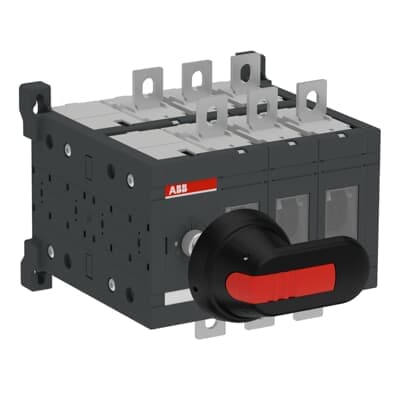

OT250E03DP
Key Features
- 1High Performance: Designed for reliable and efficient electrical operations.
- 2Robust Safety Features: Equipped with comprehensive inbuilt safety features for secure operation.
- 3Compact Design: Ideal for space-constrained applications with a compact footprint.
- 4Front Operated: Easy to use with a front-operated handle for convenient access.
- 5Long-Term Durability: Built to last with a mechanical durability of 20,000 operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Environmental Information | 1SCC301265D0201 |
| Pollution Degree | 3 | Product Net Width | 170 mm |
| Product Net Height | 150 mm | Product Net Depth / Length | 159.5 mm |
| Product Net Weight | 3.2 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A | Degree of Protection | Front IP00 |
| Handle Color | Black | Handle Type | Handle and shaft included |
| Lock Type | Yes | Mechanical Durability | 20000 |
| Number of Poles | 6P | Operating Mode | Front operated |
| Pollution Degree | 3 | Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (315 A fuse, 500 V) 100 kA (355 A fuse, 690 V) 80 kA (250 A fuse, 690 V) 100 kA | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 250 A (500 V) 250 A (690 V) 250 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A (500 V) 250 A (690 V) 250 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A (500 V) 250 A (690 V) 250 A |
| Rated Operational Current DC-21B (Ie) | (1000 V) 250 A | Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 75 kW (400 ... 415 V) 145 kW (500 V) 170 kW (690 V) 250 kW |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA | Standards | IEC 60947-3 |
| Terminal Type | Lug terminals | Terminal Width | 20 mm |
| Tightening Torque | acc. IEC 60947-1 15 ⦠22 N·m | Tightening Torque | acc. IEC 60947-1 15 ⦠22 N·m |
| Object Classification Code | Q | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA107190R1001 |
Specifications may be subject to change without notice
