Product Model

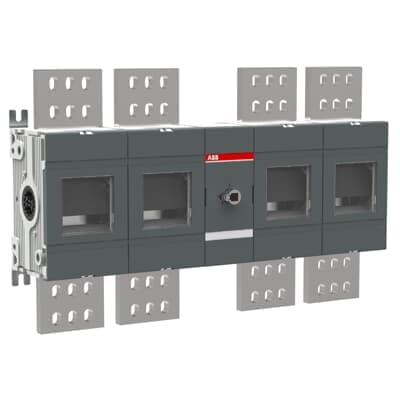

OT2500E22
Key Features
- 1High Thermal Current: Handles up to 2500 A at 40°C in conventional free-air conditions.
- 2Mechanical Durability: Designed for long-lasting performance with a base mounting type.
- 3Front Operated: Easy to use with a black IP65 handle and shaft, included with terminal bolt kit.
- 4Standard Protection: Front IP00 degree of protection for reliable operation in various environments.
- 5Compliance Certifications: Meets EU Directive 2011/65/EU and Amendment 2015/863, with RoHS and TSCA compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Environmental Information | 1SCC301268D0201 |
| Pollution Degree | 3 | Product Net Width | 598.5 mm |
| Product Net Height | 376.5 mm | Product Net Depth / Length | 145.5 mm |
| Product Net Weight | 32.4 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 2500 A |
| Degree of Protection | Front IP00 | Distance Between Phases | Standard |
| Fourth Pole Position | Right Side | Fourth Pole Type | Switched - Simultaneous Function |
| Handle Type | Handle and shaft not included | Lock Type | No |
| Mechanical Durability | 6000 | Mounting Type | Base mounting |
| Number of Poles | 4P | Operating Mode | Front operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 85 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 2500 A (500 V) 2500 A (690 V) 2500 A |
| Rated Operational Current AC-22B (Ie) | (380 ... 415 V) 2500 A (500 V) 2500 A (690 V) 2500 A | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 176 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kA |
| Special Functions | No | Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism Between the Poles 22 (Between the Poles) | Terminal Type | Lug terminals |
| Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Manufacturer ID | 1SCA105155R1001 |
Specifications may be subject to change without notice
