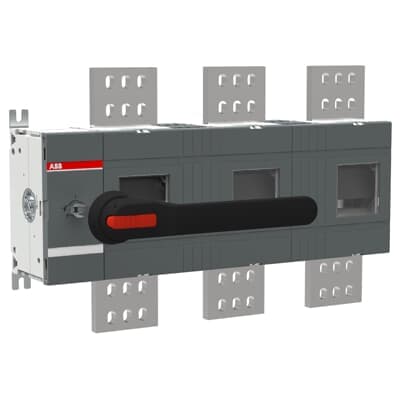

Product Model
OT2500E03W8P
Key Features
- 1Padlockable handle for secure operation in the off-position and door interlock in the on-position.
- 2Adjustable shaft for a range of installation depths, ensuring flexibility in various settings.
- 3Includes terminal bolt kit and a black ON-OFF plastic handle (OHB200J12P) and shaft (OXP12x280) as standard.
- 4IP65 protected handle for enhanced durability and protection against environmental factors.
- 5Suitable for applications up to 2500 A with a rated insulation voltage of 1000 V, meeting diverse electrical needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Environmental Information | 1SCC301268D0201 |
| Pollution Degree | 3 | Product Net Width | 590.5 mm |
| Product Net Height | 376.5 mm | Product Net Depth / Length | 145.5 mm |
| Product Net Weight | 27.9 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 2500 A |
| Degree of Protection | Front IP00 | Distance Between Phases | Phase distance 185 mm |
| Handle Color | Black | Handle Type | Handle and shaft included |
| Lock Type | Yes | Mechanical Durability | 6000 |
| Mounting Type | Base mounting | Number of Poles | 3P |
| Operating Mode | Front operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 85 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 2500 A (500 V) 2500 A (690 V) 2500 A | Rated Operational Current AC-22B (Ie) | (380 ... 415 V) 2500 A (500 V) 2500 A (690 V) 2500 A |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 176 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kA | Special Functions | Wide phase distance 185 |
| Standards | IEC 60947-3 | Switches Operating Mechanism | Mechanism at the End of the Switch 03 (Left Side) |
| Terminal Type | Lug terminals | Terminal Width | 100 mm |
| Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | E-Number (Finland) | 3641596 |
| Manufacturer ID | 1SCA108049R1001 |
Specifications may be subject to change without notice
