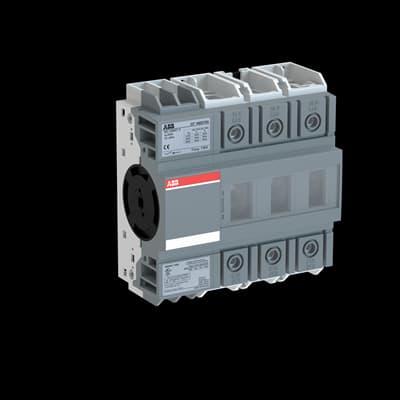

Product Model
OT160GT03
Key Features
- 13-pole design for versatile applications.
- 2Front-operated mechanism for easy access.
- 3IP20 protection for secure electrical connections.
- 4Rated for 160 A operational current.
- 5Compact dimensions (123 mm W x 75 mm D x 130 mm H).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Environmental Information | 1SCC301267D0201 |
| Pollution Degree | 3 | Product Net Width | 123 mm |
| Product Net Height | 130 mm | Product Net Depth / Length | 75 mm |
| Product Net Weight | 0.8 kg | Cable Cross-Section | Cu 10 ... 70 mm² |
| Conventional Free-air Thermal Current (Ith) | Π= 40 °C 160 A | Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | Front IP20 | Distance Between Phases | Standard |
| Handle Type | Handle and shaft not included | Lock Type | No |
| Mechanical Durability | 20000 | Mounting Type | Door mounting |
| Number of Poles | 3 | Operating Mode | Front and side operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W | Rated Conditional Short-Circuit Current (Inc) | (200 A fuse, 500 V) 100 kA (200 A fuse, 690 V) 50 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A | Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 45 kW (400 ... 415 V) 75 kW (500 V) 90 kW (690 V) 132 kW |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 12 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 4 kA | Special Functions | No |
| Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 | Switches Operating Mechanism | Mechanism at the End of the Switch 03 (Left Side) |
| Terminal Type | Screw Terminals | Tightening Torque | acc. IEC 60947-1 6 N·m |
| Maximum Operating Voltage UL/CSA | 600 V | Ampere Rating | 125 A |
| Horsepower Rating UL/CSA | (240 V AC) Single Phase 20 Hp (440 ... 480 V AC) Single Phase 30 Hp | Tightening Torque | acc. IEC 60947-1 6 N·m |
| Tightening Torque UL/CSA | 53 in·lb | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5293 >> Switch disconnector |
| eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Norway) | 4372126 | Manufacturer ID | 1SCA135136R1001 |
Specifications may be subject to change without notice
