Product Model

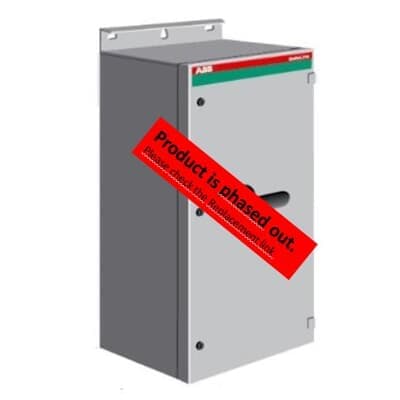

OT160EAUA3A
Key Features
- 1High Current Rating: 160A for reliable power handling.
- 2Compact Design: Space-saving solution for various applications.
- 3Safety First: Non-fusible design ensures continuous protection.
- 4Versatile Mounting: Panel mountable for easy installation.
- 5Durable Construction: Built to withstand extreme conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | acc. to IEC 60529 IP54 | Pollution Degree | 3 |
| Product Net Width | 400 mm | Product Net Height | 600 mm |
| Product Net Depth / Length | 230 mm | Product Net Weight | 19 kg |
| Cable Cross-Section | 120 mm² | Cable Entry Position | Down/Down |
| Cable Outlets Per Side | Blank / Open | Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | acc. to IEC 60529 IP54 | Enclosure Material | Steel sheet |
| Handle Color | Red / Yellow | Handle Type | Pistol handle |
| Maximum Mounted Auxiliary Contacts | 2 NO, 1 NC | Mounted Auxiliary Contacts | 1 NO, 1 NC |
| Number of Poles | 3P | Pollution Degree | 3 |
| Position of Line Terminals | Bottom In - Bottom Out | Position of PE Terminals | Bottom In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 135 A (500 V) 125 A (690 V) 80 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 75 kW (500 V) 75 kW (690 V) 75 kW | Rated Operational Voltage | Main Circuit 750 V |
| Object Classification Code | Q | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA022298R0200 |
Specifications may be subject to change without notice
