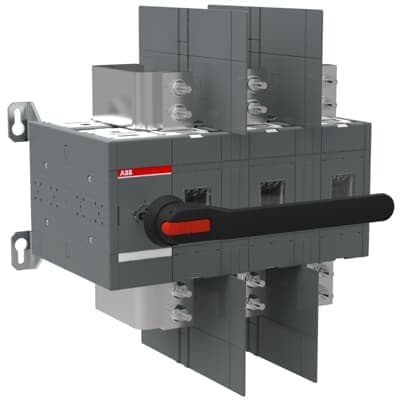

Product Model
OT1600U03P
Key Features
- 1Designed for efficient and reliable electrical operations with a 1600 A amperage rating.
- 2Equipped with inbuilt safety features to ensure safe operation and emergency manual control.
- 3Constructed with a fully enclosed 3-pole switch-disconnector for durability and protection.
- 4Compact dimensions (546 mm H x 445 mm W x 335 mm D) for easy installation in various settings.
- 5Meets UL 98 and CSA C22.2 NO.4 standards, following EU Directive 2011/65/EU for RoHS compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Pollution Degree | 3 |
| Product Net Width | 445 mm | Product Net Height | 546 mm |
| Product Net Depth / Length | 335 mm | Product Net Weight | 54.4 kg |
| Conventional Thermal Current (Ithe) | Fully Enclosed 1600 A | Degree of Protection | Front IP00 |
| Distance Between Phases | Standard | Handle Color | Black |
| Handle Type | Handle and shaft included | Lock Type | Yes |
| Mechanical Durability | 2500 | Mounting Type | Base mounting |
| Number of Poles | 3P | Operating Mode | Front operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 96 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| Special Functions | No | Standards | UL 98 / CSA C22.2 NO.4 |
| Switches Operating Mechanism | Mechanism at the End of the Switch 03 (Left Side) | Terminal Type | Lug terminals |
| Tightening Torque | acc. IEC 60947-1 56 N·m | Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 1600 A | Tightening Torque | acc. IEC 60947-1 56 N·m |
| Tightening Torque UL/CSA | 500 in·lb | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA144207R1001 |
Specifications may be subject to change without notice
