Product Model

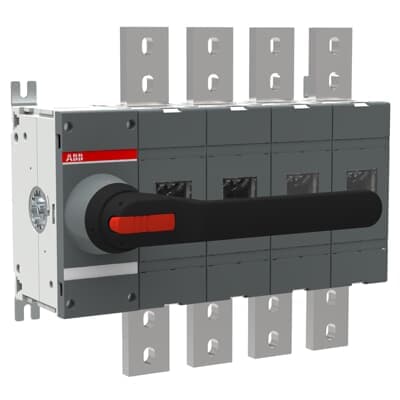

OT1600E04K-135
Key Features
- 1High Voltage Capability: Operates up to 1500Vdc and 1600 Amperes.
- 2Compact Design: Ideal for space-saving installations with a compact frame size.
- 3Enhanced Safety: Equipped with comprehensive inbuilt safety features for reliable performance.
- 4Versatile Connectivity: Supports Connection types 2 and 3 for versatile applications.
- 5Durable Construction: Built to withstand 6000 mechanical operation cycles.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Environmental Information | 1SCC301233D0201 |
| Pollution Degree | 3 | Product Frame Size | OT1600-135 |
| Product Net Width | 414.5 mm 16.3 in | Product Net Height | 372 mm 14.6 in |
| Product Net Depth / Length | 148.5 mm 5.9 in | Product Net Weight | 22.3 kg 49.2 lb |
| Connection Configuration | Connection type 2 or 3 | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 1600 A Π= 40 °C 2500 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 1600 A Fully Enclosed 2500 A | Degree of Protection | Front IP00 |
| Handle Color | Black | Handle Length | 274 mm 10.8 in |
| Handle Type | Direct mounted pistol type handle | Lock Type | Yes |
| Mechanical Durability | 600 cycle | Mounting Type | Base mounting |
| Number of Circuits | 1 2 | Number of Poles | 4 |
| Operating Mode | Front Operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 48 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | 1500 V |
| Rated Operational Current AC-20B | (1000 V AC) 1600 A (1000 V AC) 2500 A | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A |
| Rated Operational Current DC-20B | (1500 V DC) 1600 A (1500 V DC) 2500 A | Rated Short-time Withstand Current Low Voltage (Icw) | for 0.3 s 36 kA for 0.3 s 50 kA for 0.3 s 65 kA |
| Rated Voltage (Ur) | 1500 V | Shaft Diameter | 12 mm 0.47 in |
| Shaft Length | 280 mm 11.0 in | Special Functions | No |
| Standards | IEC 60947-1, -3 | Switches Operating Mechanism | Mechanism at the End of the Switch 04 (Left Side) |
| Terminal Type | Lug terminals | Terminal Width | 50 mm 1.97 in |
| Utilization | Energy Storage System (ESS) | Utilization Category | Connecting and disconnecting under no-load conditions - occasional actuation (DC-20B) Connecting and disconnecting under no-load conditions - occasional actuation (AC-20B) |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA159251R1001 |
Specifications may be subject to change without notice
