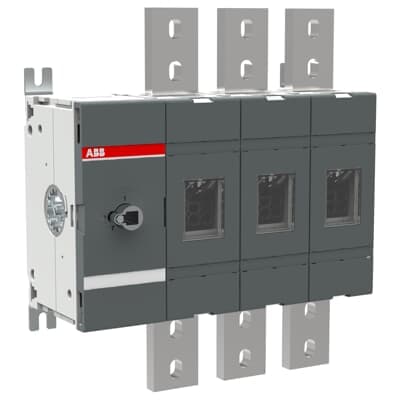

Product Model
OT1600E03/C9
Key Features
- 1High-Performance Electrical Solution: Designed for reliability in extreme conditions.
- 23-Pole Front Operated: Easy to install and operate with a front-operated mechanism.
- 3Rated Operational Current: Handles up to 1600 A with a voltage rating of 1000 V.
- 4Base Mounting Type: Convenient base mounting for easy installation and maintenance.
- 5Compliant with IEC Standards: Meets IEC 60947-3 standards for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Environmental Information | 1SCC301233D0201 |
| Pollution Degree | 3 | Product Net Width | 930 mm |
| Product Net Height | 1000 mm | Product Net Depth / Length | 1200 mm |
| Product Net Weight | 158 kg | Conventional Thermal Current (Ithe) | Fully Enclosed 1600 A |
| Degree of Protection | Front IP00 | Handle Type | Handle and shaft not included |
| Lock Type | No | Mechanical Durability | 6000 |
| Number of Poles | 3P | Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 48 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A |
| Rated Operational Power AC-23A (Pe) | (400 ... 415 V) 710 kW (500 V) 900 kW (690 V) 1200 kW | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 110 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| Standards | IEC 60947-3 | Terminal Type | Lug terminals |
| Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
| Object Classification Code | Q | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA126287R1001 |
