Product Model

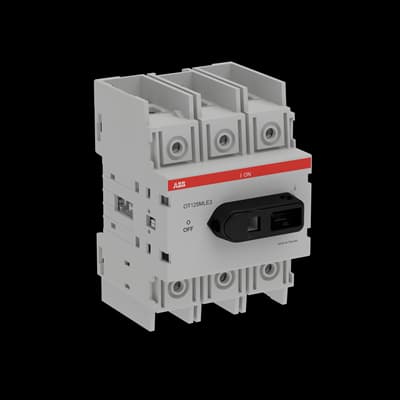

OT125MLE3
Key Features
- 1High Current Rating: Handles 125A continuous current.
- 2Three-Pole Design: Suitable for three-phase electrical systems.
- 3Compact Design: Measures 100 mm in width, 74 mm in depth, and 70 mm in height.
- 4IP20 Protection: Ensures reliable operation in various environments.
- 5Central Mounting: Designed for central front mounting, enhancing accessibility and ease of use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Environmental Information | 1SCC301264D0201 |
| Pollution Degree | 3 | Product Net Width | 100 mm |
| Product Net Height | 70 mm | Product Net Depth / Length | 74 mm |
| Product Net Weight | 0.36 kg | Cable Cross-Section | Cu 10 ... 70 mm² |
| Conventional Free-air Thermal Current (Ith) | Π= 40 °C 125 A | Conventional Thermal Current (Ithe) | Fully Enclosed 125 A |
| Degree of Protection | Front IP20 | Distance Between Phases | Standard |
| Handle Type | Handle and shaft not included | Lock Type | No |
| Mechanical Durability | 20000 | Mounting Type | Base mounting |
| Number of Poles | 3P | Operating Mode | Front operated |
| Pollution Degree | 3 | Power Loss | at Rated Operating Conditions per Pole 6.3 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 125 A (500 V) 125 A (690 V) 125 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 125 A (500 V) 125 A (690 V) 125 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 90 A (500 V) 70 A (690 V) 50 A | Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 22 kW (400 ... 415 V) 45 kW (500 V) 45 kW (690 V) 45 kW |
| Rated Operational Voltage | Main Circuit 750 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 3.6 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kA | Special Functions | No |
| Standards | IEC 60947-3 | Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals | Tightening Torque | acc. IEC 60947-1 6 N·m |
| Tightening Torque | acc. IEC 60947-1 6 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601255 | Manufacturer ID | 1SCA022752R6180 |
