Product Model

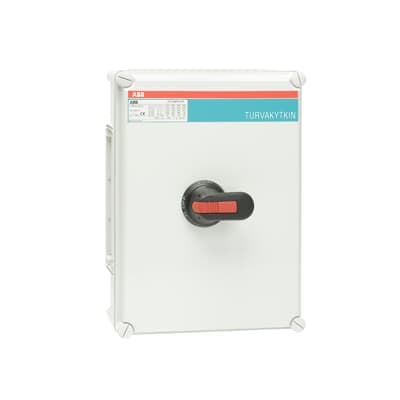

OT125GFCC3T
Key Features
- 1Padlockable Handle: Secure your switch with a padlockable handle designed for three padlocks.
- 2IP65 Protection: Built for both indoor and outdoor use, the switch is protected against low-pressure water jets.
- 3Interlocked Cover: The cover is interlocked for added safety, with the option to defeat the interlocking mechanism.
- 4PE Terminals Included: Comes with PE terminals for secure electrical connections.
- 5High-Performance Enclosure: Made from rigid glass-reinforced polycarbonate, ensuring durability and UV protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
| Product Net Width | 280 mm | Product Net Height | 380 mm |
| Product Net Depth / Length | 130 mm | Product Net Weight | 3.4 kg |
| Cable Cross-Section | 10 ... 70 mm² | Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | II-flange / II-flange | Connecting Capacity Main Circuit | Screw Clamp 10 ... 70 mm² Screw Clamp / PE Terminal 2pc,10 ... 70 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 125 A | Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic | Enclosure Type | Fibox |
| Handle Color | Black | Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK08 | Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 1 NO, 1 NC | Neutral Type | No neutral terminal |
| Number of Auxiliary Contacts NC | 1 | Number of Auxiliary Contacts NO | 1 |
| Number of Poles | 3P | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out | Rated Conditional Short-Circuit Current (Inc) | 24 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 125 A (500 V) 125 A (690 V) 125 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 125 A (500 V) 125 A (690 V) 125 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 55 kW (500 V) 75 kW (690 V) 110 kW | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 12 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 4 kA |
| Recommended Screw Driver | Main Circuit Hexagon 4 | Standards | IEC 60947-1, -3 |
| Terminal Type | Screw Terminals | Tightening Torque | Main Circuit 6 N·m |
| Wire Stripping Length | 20 mm | Wire Stripping Length | 20 mm |
| Recommended Screw Driver | Main Circuit Hexagon 4 | Tightening Torque | Main Circuit 6 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch | eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Finland) | 3640405 |
| E-Number (Norway) | 1428975 | E-Number (Sweden) | 3134565 |
| Manufacturer ID | 1SCA148608R1001 |
Specifications may be subject to change without notice
