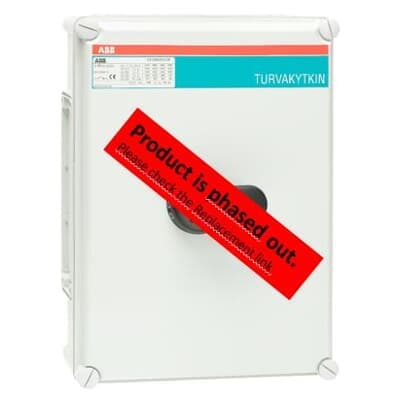

Product Model
OT125EFCC4A
Key Features
- 1125A for reliable performance in demanding applications.
- 2Meets stringent safety standards with IP20 protection against dust and external agents.
- 3Modular design with various mounting options for flexible installation.
- 4Includes detailed data sheets and technical information for easy integration.
- 5Planned to follow EU Directive 2002/95/EC for RoHS compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
| Product Net Width | 280 mm | Product Net Height | 380 mm |
| Product Net Depth / Length | 130 mm | Product Net Weight | 5.7 kg |
| Cable Cross-Section | 120 mm² | Cable Entry Position | Up/Down |
| Cable Outlets Per Side | II-flange / II-flange | Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | acc. to IEC 60529 IP65 | Enclosure Material | Plastic |
| Handle Color | Red / Yellow | Handle Type | Pistol handle |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC | Mounted Auxiliary Contacts | 1 NO, 1 NC |
| Number of Poles | 4P | Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 4 W | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 125 A (500 V) 125 A (690 V) 125 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 125 A (500 V) 90 A (690 V) 70 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 55 kW (500 V) 55 kW (690 V) 55 kW | Rated Operational Voltage | Main Circuit 750 V |
| Object Classification Code | Q | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA022745R6200 |
Specifications may be subject to change without notice
