Product Model

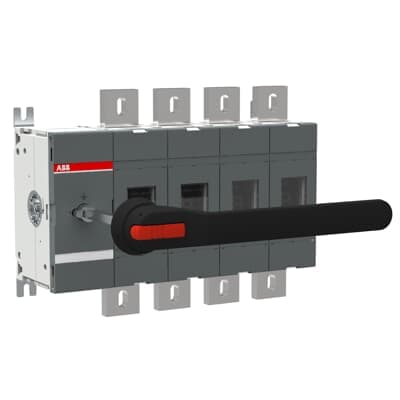

OT1250EP04P
Key Features
- 1IP65 Protected Handle: The handle is designed with IP65 protection, ensuring durability and resistance to environmental factors.
- 2Padlockable Handle: The handle is padlockable in the off-position, enhancing security and preventing unauthorized operation.
- 3Adjustable Shaft: The shaft is adjustable for a range of installation depths, providing flexibility in various settings.
- 4Robust Safety Features: Equipped with comprehensive safety features, including a mechanism at the end of the switch for secure operation.
- 5High-Rated Insulation Voltage: Rated insulation voltage of 1000 V ensures reliable performance in demanding electrical environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Environmental Information | 1SCC301233D0201 |
| Pollution Degree | 3 | Product Net Width | 414.5 mm |
| Product Net Height | 306 mm | Product Net Depth / Length | 145.5 mm |
| Product Net Weight | 19.7 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 1250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 1250 A | Degree of Protection | Front IP00 |
| Distance Between Phases | Standard | Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function | Handle Color | Black |
| Handle Type | Handle and shaft included | Lock Type | Yes |
| Mechanical Durability | 6000 | Mounting Type | Base mounting |
| Number of Poles | 4P | Operating Mode | Front operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 29 W | Rated Conditional Short-Circuit Current (Inc) | (1250 A fuse, 415 V) 80 kA (1250 A fuse, 500 V) 100 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A |
| Rated Operational Power AC-23A (Pe) | (400 ... 415 V) 710 kW (500 V) 900 kW (690 V) 1200 kW | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 92 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| Special Functions | No | Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch 04 (Left Side) | Terminal Type | Lug terminals |
| Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Utilization | Earthing Switch Use |
| Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601491 | Manufacturer ID | 1SCA118454R1001 |
Specifications may be subject to change without notice
