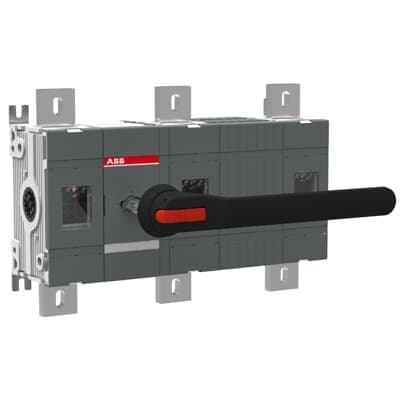

Product Model
OT1250E12W8P
Key Features
- 1High Performance: Designed to handle high currents up to 1250 A.
- 2Reliable Operation: Meets IEC standards for insulation voltage and impulse withstand voltage.
- 3Easy Installation: Includes a black on-off plastic handle and shaft with IP65 protection.
- 4Mechanical Durability: Built to withstand 6000 mechanical operations.
- 5Versatile Application: Suitable for various voltage ranges including 380-415 V, 500 V, and 690 V.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Environmental Information | 1SCC301233D0201 |
| Pollution Degree | 3 | Product Net Width | 544.5 mm |
| Product Net Height | 306 mm | Product Net Depth / Length | 145.5 mm |
| Product Net Weight | 19.5 kg | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 1250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 1250 A | Degree of Protection | Front IP00 |
| Distance Between Phases | Phase distance 185 mm | Handle Color | Black |
| Handle Type | Handle and shaft included | Lock Type | Yes |
| Mechanical Durability | 6000 | Mounting Type | Base mounting |
| Number of Poles | 3P | Operating Mode | Front operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 29 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A |
| Rated Operational Power AC-23A (Pe) | (400 ... 415 V) 710 kW (500 V) 900 kW (690 V) 1200 kW | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 110 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| Special Functions | Wide phase distance 185 | Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism Between the Poles 12 (Between the Poles) | Terminal Type | Lug terminals |
| Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m | Tightening Torque | acc. IEC 60947-1 50 ⦠75 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Manufacturer ID | 1SCA116431R1001 |
Specifications may be subject to change without notice
