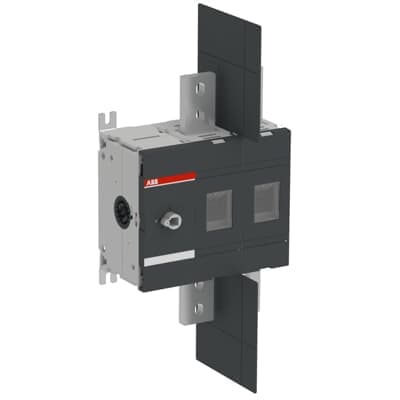

Product Model
OT1200U02
Key Features
- 1High Amperage Rating: 1200A for heavy-duty applications.
- 2Compact Design: 372 mm H x 255 mm W x 127 mm D dimensions for space-saving installations.
- 3Quick-Make/Quick-Break Mechanism: Fast and reliable operation with self-cleaning contacts.
- 4Enhanced Safety Features: Visible blades and track-resistant material for reduced risk of flash-over.
- 5Versatile Mounting Options: Din rail, door, or base mounting for flexible installation orientations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Environmental Information | 1SCC301233D0201 |
| Pollution Degree | 3 | Product Net Width | 254.5 mm |
| Product Net Height | 372 mm | Product Net Depth / Length | 145.5 mm |
| Product Net Weight | 12.1 kg | Degree of Protection | Front IP00 |
| Distance Between Phases | Standard | Handle Type | Handle and shaft not included |
| Lock Type | No | Mechanical Durability | 6000 |
| Mounting Type | Base mounting | Number of Poles | 2 |
| Operating Mode | Front operated | Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 48 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 110 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA | Special Functions | No |
| Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 | Switches Operating Mechanism | Mechanism at the End of the Switch 02 (Left Side) |
| Terminal Type | Lug terminals | Tightening Torque | acc. IEC 60947-1 56.5 N·m |
| Maximum Operating Voltage UL/CSA | 600 V | Ampere Rating | 1200 A |
| Tightening Torque | acc. IEC 60947-1 56.5 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA105796R1001 |
