Product Model

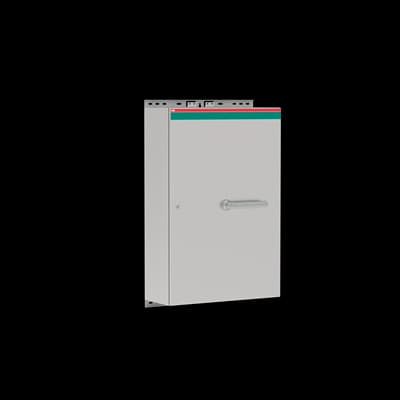

OT1000ERRR3TZ
Key Features
- 1High Power Rating: 560 kW continuous current capacity.
- 2Acid Resistance: Built to withstand corrosive environments.
- 3IP65 Protection: Robust enclosure for indoor and outdoor use.
- 43-Phase Operation: Suitable for three-phase electrical systems.
- 5Safety Features: Meets European safety standards (EN60204) and includes padlockable handles for secure operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | acc. to IEC 60529 IP65 | Pollution Degree | 3 |
| Product Net Width | 800 mm | Product Net Height | 1200 mm |
| Product Net Depth / Length | 330 mm | Product Net Weight | 64.97 kg |
| Cable Entry Position | Top/Bottom | Cable Outlets Per Side | 8xring-flange+ø25.5mm / 8xring-flange+ø25.5mm |
| Connecting Capacity Main Circuit | Hole Diameter 12 mm Screw Clamp / PE Terminal 10pc,25 ... 120 mm² | Conventional Thermal Current (Ithe) | Fully Enclosed 1000 A |
| Degree of Protection | acc. to IEC 60529 IP65 | Enclosure Material | Stainless steel |
| Handle Color | Stainless Steel | Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 | Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 2 NO, 1 NC | Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 | Number of Poles | 3P |
| Pollution Degree | 3 | Power Loss | at Rated Operating Conditions per Pole 19 W |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1000 A (500 V) 1000 A (690 V) 1000 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1000 A (500 V) 1000 A (690 V) 1000 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 560 kW (500 V) 710 kW (690 V) 1000 kW |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 110 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA | Recommended Screw Driver | Main Circuit M12 |
| Special Functions | EMC | Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 75 N·m | Recommended Screw Driver | Main Circuit M12 |
| Tightening Torque | Main Circuit 75 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| UNSPSC | 39122205 | IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Finland) | 3642113 | E-Number (Sweden) | 3135054 |
| Manufacturer ID | 1SCA103329R1001 |
Specifications may be subject to change without notice
