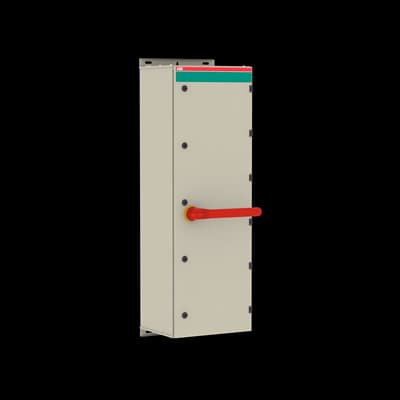

Product Model
OT1000BBRR3AZ
Key Features
- 1Built with self-extinguishing plastic (UL94 V0) and resistant to UV radiation (F 1, UL 746C).
- 2Rated up to 1000 V, ensuring safe operation in various electrical environments.
- 3Meets IEC 60947-3 standards for switch-disconnectors and EN60204 for machinery safety.
- 4Available in 3-, 4-, and 6-pole versions, suitable for 4- and 5-wire systems.
- 5Includes isolated neutral terminals and padlockable handles for secure operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | acc. to IEC 60529 IP65 | Product Net Width | 400 mm |
| Product Net Height | 1200 mm | Product Net Depth / Length | 330 mm |
| Product Net Weight | 62 kg | Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 4xring-flange / 4xring-flange, Knock-outs: 3x10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm | Connecting Capacity Main Circuit | Hole Diameter 12 mm Screw Clamp / PE Terminal 8pc,25 ... 120 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 1000 A | Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Steel sheet | Handle Color | Red / Yellow |
| Handle Type | Pistol handle | Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC | Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Neutral Type | No neutral terminal | Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 | Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 19 W | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1000 A (500 V) 1000 A (690 V) 1000 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1000 A (500 V) 1000 A (690 V) 1000 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 560 kW (500 V) 710 kW (690 V) 1000 kW | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 110 kA | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| Recommended Screw Driver | Main Circuit M12 | Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 75 N·m | Recommended Screw Driver | Main Circuit M12 |
| Tightening Torque | Main Circuit 75 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| UNSPSC | 39122205 | IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA102815R1001 |
Specifications may be subject to change without notice
