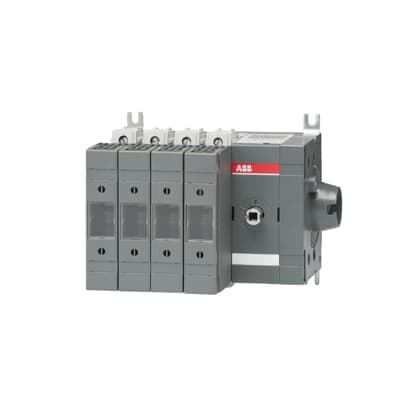

Product Model
OS63GDS40F
Key Features
- 1Enhanced Electrical Safety: Designed with substantial experience in electrical safety to eliminate the risk of accidents.
- 2High Thermal Current Ratings: Rated thermal current up to 63A in ambient 35°C and temporarily up to 40°C.
- 3Robust Insulation: Insulation voltage of 1000V with dielectric strength of 10kV at 50Hz for reliable operation.
- 4Versatile Mounting Options: Suitable for various mounting positions including ceiling, wall, and enclosure with derating percentages.
- 5Compliance with IEC 60947-3: Meets international standards for switch fuses ensuring compatibility and reliability in diverse applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Pollution Degree | 3 | Product Net Width | 170 mm |
| Product Net Height | 112 mm | Product Net Depth / Length | 133 mm |
| Product Net Weight | 1.6 kg | Cable Cross-Section | 2.5 ... 25 mm² |
| Connecting Capacity | Stranded 2.5 ⦠25 mm² Flexible 2.5 ⦠25 mm² | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 63 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 63 A | Fourth Pole Type | Switched - Fusible Pole |
| Fuse Size | NH000 | Fuse System | DIN |
| Handle Type | Handle and shaft not included | Mounting Type | Base mounting |
| Number of Poles | 4 | Operating Mode | Side Operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 4 W | Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
| Rated Current (In) | Main Circuit 63 A | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V | Rated Operational Current AC-21A (Ie) | (500 V) 63 A (690 V) 63 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 63 A (690 V) 63 A | Rated Operational Current AC-23A (Ie) | (500 V) 63 A (690 V) 63 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 18.5 kW (400 V) 30 kW (415 V) 30 kW (500 V) 37 kW (690 V) 55 kW | Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms | Standards | IEC 60947-3 |
| Switches Operating Mechanism | 40 (Right Side) | Terminal Type | Screw Terminals |
| Tightening Torque | 3 N·m 4 N·m | Wire Stripping Length | Main Circuit 12 mm Main Circuit 0.47 in |
| Wire Stripping Length | Main Circuit 12 mm Main Circuit 0.47 in | Tightening Torque | 3 N·m 4 N·m |
| Object Classification Code | Q | ETIM 8 | EC001040 - Fuse switch disconnector |
| ETIM 9 | EC001040 - Fuse switch disconnector | UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector | eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA116877R1001 |
Specifications may be subject to change without notice
