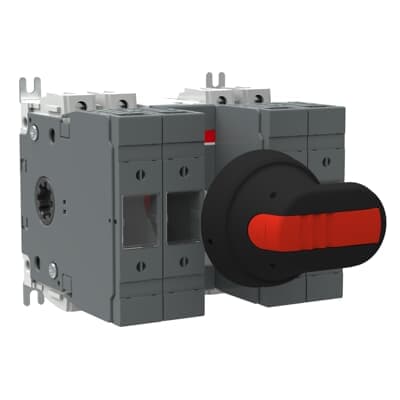

Product Model
OS63GD22N2P/B20
Key Features
- 1High-quality switch fuse with 20 pieces included for comprehensive protection.
- 2Reliable performance in harsh industrial environments with robust design.
- 3Easy installation and integration with existing electrical systems.
- 4Compact and space-efficient design for minimal installation footprint.
- 5Includes 20 pieces for complete coverage and redundancy in critical applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 27.4 kg | Connecting Capacity | Stranded 2.5 ⦠25 mm² Flexible 2.5 ⦠25 mm² |
| Fuse Size | NH000 | Fuse System | DIN |
| Mounting Type | Base mounting | Number of Poles | 4 |
| Operating Mode | Front Operated | Power Loss | at Rated Operating Conditions per Pole 4 W |
| Rated Operational Voltage | Main Circuit 690 V AC | Standards | IEC 60947-3 |
| Terminal Type | Screw Terminals | Tightening Torque | 3 N·m 4 N·m |
| Tightening Torque | 3 N·m 4 N·m | ETIM 8 | EC001040 - Fuse switch disconnector |
| ETIM 9 | EC001040 - Fuse switch disconnector | UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA123220R1001 |
Specifications may be subject to change without notice
