Product Model

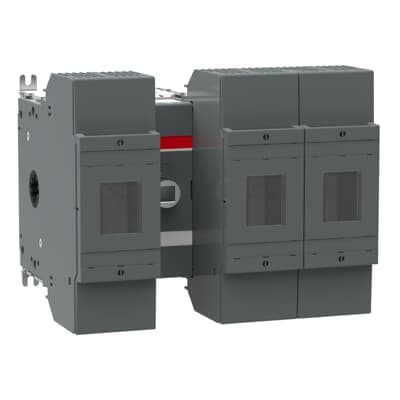

OS400D03BB-KD
Key Features
- 1Smart Connectivity: Seamlessly integrates with digital systems for enhanced monitoring and control.
- 2High Current Capacity: Handles up to 400A, ensuring robust electrical protection.
- 3Durable Design: Built with high-quality materials, offering long-lasting performance.
- 4Easy Installation: Features a long lever handle for easy operation and mounting.
- 5Global Compatibility: Available in multiple regions and languages, ensuring worldwide accessibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 6.18 kg | Fuse Size | NH0 NH1 NH2 |
| Fuse System | DIN | Mounting Type | Base mounting |
| Number of Poles | 3 | Operating Mode | Front Operated |
| Power Loss | at Rated Operating Conditions per Pole 30 W | Rated Operational Voltage | Main Circuit 690 V AC |
| Standards | IEC 60947-3 | Terminal Type | Lug terminals |
| Tightening Torque | 30 ⦠44 N·m | Tightening Torque | 30 ⦠44 N·m |
| ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA114775R1001 |
Specifications may be subject to change without notice
