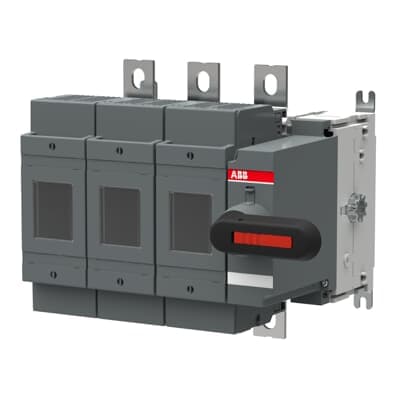

Product Model
OS250D30K
Key Features
- 1Highly Reliable and Efficient: The OS250D03K switch fuse offers consistent performance and reliability in low-voltage applications.
- 2Easy to Operate: Front-operated design makes it simple to switch and manage electrical connections.
- 3Durable Construction: Built with high-quality materials, ensuring long-lasting performance and minimal maintenance.
- 4Versatile Installation: Directly mounted handle allows for easy integration into various electrical systems.
- 5Compliant with Industry Standards: Meets or exceeds international standards for safety and performance in low-voltage applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 154 mm | Product Net Height | 208 mm |
| Product Net Depth / Length | 193 mm | Product Net Weight | 4.0 kg |
| Fuse Size | NH0 NH1 | Fuse System | DIN |
| Mounting Type | Base mounting | Number of Poles | 3 |
| Operating Mode | Front Operated | Power Loss | at Rated Operating Conditions per Pole 13 W |
| Rated Operational Voltage | Main Circuit 690 V AC | Standards | IEC 60947-3 |
| Terminal Type | Lug terminals | Tightening Torque | 30 ⦠44 N·m |
| Tightening Torque | 30 ⦠44 N·m | Object Classification Code | Q |
| ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371392 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA113110R1001 |
Specifications may be subject to change without notice
