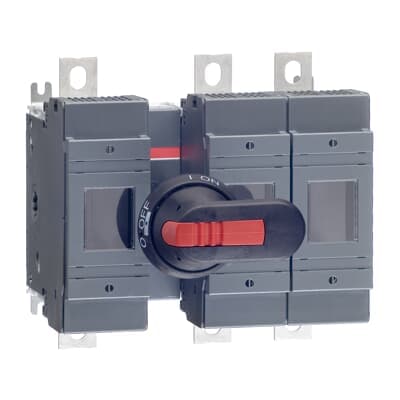

Product Model
OS250D12/B60
Key Features
- 1Advanced protection for electrical systems with a 3-pole design.
- 2Front-operated mechanism for easy handling and operation.
- 3DIN fuse system ensures high reliability and safety standards.
- 4Compact dimensions (WxHxD/L) 206 mm x 199 mm x 154 mm for versatile installation.
- 5Includes NH0 and NH1 fuse sizes for customizable protection options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 234 kg | Fuse Size | NH0 NH1 |
| Fuse System | DIN | Mounting Type | Base mounting |
| Number of Poles | 3 | Operating Mode | Front Operated |
| Power Loss | at Rated Operating Conditions per Pole 13 W | Rated Operational Voltage | Main Circuit 690 V AC |
| Standards | IEC 60947-3 | Terminal Type | Lug terminals |
| Tightening Torque | 30 ⦠44 N·m | Tightening Torque | 30 ⦠44 N·m |
| ETIM 8 | EC001040 - Fuse switch disconnector | ETIM 9 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA156571R1001 |
Specifications may be subject to change without notice
