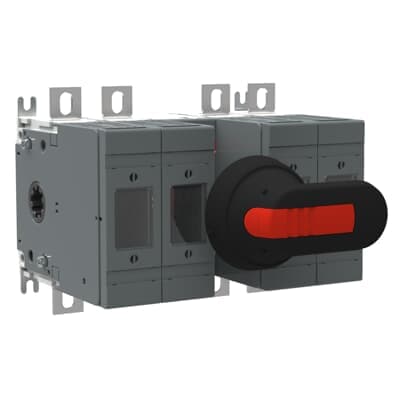

Product Model
OS125GD22N1P
Key Features
- 1Handles 125 A at 40°C in free-air and fully enclosed conditions.
- 2Meets 8 kV rated impulse withstand voltage for reliable operation.
- 3Optimally designed for control panels and motor control centers.
- 4Includes pistol handles with IP65 rating, padlockable in OFF position.
- 5Follows EU Directive 2011/65/EU and Amendment 2015/863 for RoHS compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Pollution Degree | 3 | Product Net Width | 183 mm |
| Product Net Height | 140 mm | Product Net Depth / Length | 130 mm |
| Product Net Weight | 2.6 kg 5.73 lb | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 125 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 125 A | Fourth Pole Position | Left Side |
| Fourth Pole Type | Switched - With Solid Link | Fuse Size | NH000 NH00 |
| Fuse System | DIN | Handle Type | Pistol handle and shaft included |
| Mounting Type | Base mounting | Number of Poles | 4 |
| Operating Mode | Front Operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 4 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA | Rated Current (In) | Main Circuit 125 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV | Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 125 A (690 V) 125 A | Rated Operational Current AC-22A (Ie) | (500 V) 125 A (690 V) 125 A |
| Rated Operational Current AC-23A (Ie) | (500 V) 125 A (690 V) 125 A | Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 37 kW (400 V) 55 kW (415 V) 55 kW (500 V) 75 kW (690 V) 110 kW |
| Rated Operational Voltage | Main Circuit 690 V AC | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kiloampere rms |
| Standards | IEC 60947-3 | Switches Operating Mechanism | 22 (Between the Poles) |
| Terminal Type | Lug terminals | Terminal Width | 20 mm |
| Tightening Torque | 15 ⦠22 N·m | Tightening Torque | 15 ⦠22 N·m |
| Object Classification Code | Q | ETIM 8 | EC001040 - Fuse switch disconnector |
| ETIM 9 | EC001040 - Fuse switch disconnector | UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector | eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA116730R1001 |
Specifications may be subject to change without notice
