Product Model

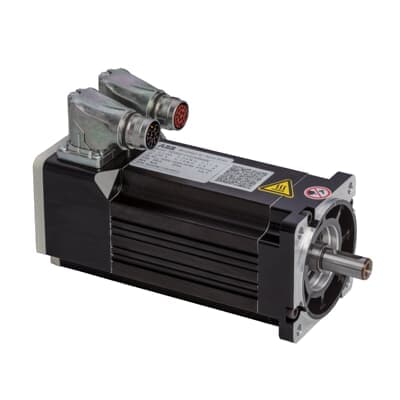

HDS65-0206AMKBS
Key Features
- 1Engineered to deliver precise control and reliable performance in industrial automation.
- 2Meets stringent quality standards, ensuring consistent operation under demanding conditions.
- 3Suitable for a wide range of industrial applications, including motor control and power management.
- 4Compliant with industry standards and secured with strict SSL encryption and PCI DSS data protection protocols.
- 5Backed by ABB's comprehensive support services, including technical assistance and maintenance options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| ABB Type Designation | HDS65-0206AMKBS | CN8 | 85044088 |
| Country of Origin | Finland (FI) | Customs Tariff Number | 8501520000 |
| Degree of Protection | IP65 | Flange Size Range | 65 mm |
| Frame Size | A | Global Commercial Alias | HDS65-0206AMKBS |
| Gross Weight | 3.18 kg | Input Voltage (Uin) | 230 V |
| Invoice Description | HDS series motor, 230 VAC, flange size 65 mm, low inertia, 0.57 kW, 17-bit multi-turn SmartABS, key, brake, seal | Made To Order | No |
| Maximum Peak Current | 17.6 A | Maximum Peak Torque | 5.4 N·m |
| Maximum Speed | 5000 r/min | Minimum Order Quantity | 1 piece |
| Motor Power AC-3 | 0.57 kW | Number of Phases | 3 |
| Order Multiple | 1 piece | Package Level 1 Depth / Length | 281 mm |
| Package Level 1 Height | 160 mm | Package Level 1 Units | 1 carton |
| Package Level 1 Width | 128 mm | Product Name | HDS motor |
| Product Net Depth / Length | 206.5 mm | Product Net Height | 97.5 mm |
| Product Net Weight | 2.88 kg | Product Net Width | 65.5 mm |
| Product Type | HDS_servo_motor | Quote Only | No |
| Rated Output Current | 4.7 A | Rated Speed | 3000 r/min |
| Rated Torque | 1.8 N·m | Replaced Product ID (OLD) | 3ABD00024309 |
| Selling Unit of Measure | piece | Shaft Diameter | 11 mm |
| Shaft Length | 23 mm | Short Description | HDS series motor, 230 VAC, flange size 65 mm, low inerita, 0.57 kW, 17-bit multi-turn SmartABS, key, brake, seal |
| Stocked At (Warehouses) | Zhengzhou, China Beijing, China Beijing, China | Two Speed Motor | No |
| UNSPSC | 26101109 | WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope | Manufacturer ID | 3ABD00048446 |
Specifications may be subject to change without notice
