Product Model

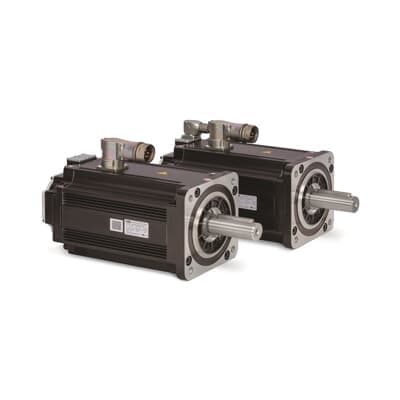

HDS65-0102AD4KBN
Key Features
- 1100% Original Brand from ABB
- 2Designed for Industrial Automation
- 3CE and ROHS Certified for Safety
- 4High Performance and High-Resolution Feedback
- 5Secure Payment with SSL Encryption and PCI DSS Data Protection Protocols
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| ABB Type Designation | HDS65-0102AD4KBN | CN8 | 85044088 |
| Country of Origin | China (CN) | Customs Tariff Number | 8501520000 |
| Degree of Protection | IP54 | Flange Size Range | 65 mm |
| Frame Size | A | Global Commercial Alias | HDS65-0102AD4KBN |
| Gross Weight | 2.04 kg | Input Voltage (Uin) | 230 V |
| Invoice Description | HDS series motor, 230 VAC, flange size 65 mm, low inertia, 0.19 kW, multi-turn Hiperface, key, brake, no seal | Made To Order | No |
| Maximum Peak Current | 5.8 A | Maximum Peak Torque | 1.8 N·m |
| Maximum Speed | 5000 r/min | Minimum Order Quantity | 1 piece |
| Motor Power AC-3 | 0.19 kW | Number of Phases | 3 |
| Order Multiple | 1 piece | Package Level 1 Depth / Length | 281 mm |
| Package Level 1 Height | 160 mm | Package Level 1 Units | 1 carton |
| Package Level 1 Width | 128 mm | Product Name | HDS motor |
| Product Net Depth / Length | 170.5 mm | Product Net Height | 97.5 mm |
| Product Net Weight | 1.74 kg | Product Net Width | 65.5 mm |
| Product Type | HDS_servo_motor | Quote Only | No |
| Rated Output Current | 1.6 A | Rated Speed | 3000 r/min |
| Rated Torque | 0.6 N·m | Replaced Product ID (OLD) | 3ABD00024309 |
| Selling Unit of Measure | piece | Shaft Diameter | 11 mm |
| Shaft Length | 23 mm | Short Description | HDS series motor, 230 VAC, flange size 65 mm, low inerita, 0.19 kW, multi-turn Hiperface, key, brake, no seal |
| Stocked At (Warehouses) | Zhengzhou, China Beijing, China Shanghai, China Beijing, China | Two Speed Motor | No |
| UNSPSC | 26101109 | WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope | Manufacturer ID | 3ABD00047589 |
Specifications may be subject to change without notice
