Product Model

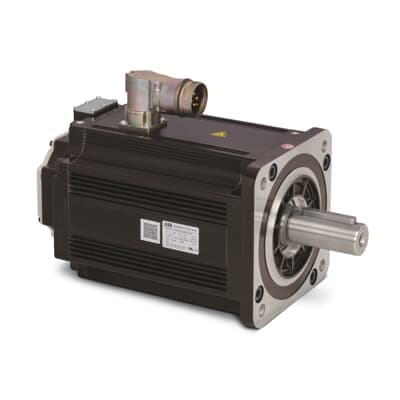

HDS180-4876BD4KNN
Key Features
- 1Achieve 3000 RPM for precise and efficient motor control.
- 2Deliver 7.6 KW of power to handle demanding industrial tasks.
- 3Operate at 400 VAC, ensuring stable and consistent performance.
- 4Choose from various feedback options including absolute and incremental encoders.
- 5Built with high-quality components for long-lasting reliability in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| ABB Type Designation | HDS180-4876BD4KNN | CN8 | 85044088 |
| Country of Origin | China (CN) | Customs Tariff Number | 8501520000 |
| Degree of Protection | IP54 | Flange Size Range | 180 mm |
| Frame Size | A | Global Commercial Alias | HDS180-4876BD4KNN |
| Gross Weight | 30.3 kg | Input Voltage (Uin) | 400 V |
| Invoice Description | HDS series motor, 400 VAC, flange size 180 mm, low inertia, 7.6 kW, multi-turn Hiperface, key, no brake, no seal | Made To Order | No |
| Maximum Peak Current | 99.7 A | Maximum Peak Torque | 150 N·m |
| Maximum Speed | 3500 r/min | Minimum Order Quantity | 1 piece |
| Motor Power AC-3 | 7.6 kW | Number of Phases | 3 |
| Order Multiple | 1 piece | Package Level 1 Depth / Length | 520 mm |
| Package Level 1 Height | 302 mm | Package Level 1 Units | 1 carton |
| Package Level 1 Width | 265 mm | Product Name | HDS motor |
| Product Net Depth / Length | 435 mm | Product Net Height | 240 mm |
| Product Net Weight | 28.9 kg | Product Net Width | 180 mm |
| Product Type | HDS_servo_motor | Quote Only | No |
| Rated Output Current | 30.8 A | Rated Speed | 1500 r/min |
| Rated Torque | 48 N·m | Replaced Product ID (OLD) | 3ABD00024309 |
| Selling Unit of Measure | piece | Shaft Diameter | 35 mm |
| Shaft Length | 80 mm | Short Description | HDS series motor, 400 VAC, flange size 180 mm, low inerita, 7.6 kW, multi-turn Hiperface, key, no brake, no seal |
| Stocked At (Warehouses) | Zhengzhou, China Beijing, China Shanghai, China Beijing, China | Two Speed Motor | No |
| UNSPSC | 26101109 | WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope | Manufacturer ID | 3ABD00047583 |
Specifications may be subject to change without notice
