Product Model

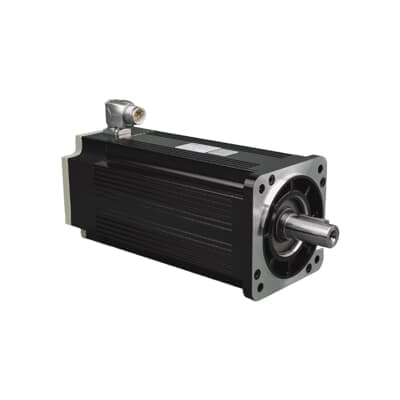

HDS130C-0817BD4KBS
Key Features
- 1High torque and inertia combinations for efficient performance.
- 2Equipped with high-performance and high-resolution feedback systems.
- 3Ideal for precision applications requiring robust motor control.
- 4Designed for industrial use with durable construction.
- 5Compatible with various control systems for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| ABB Type Designation | HDS130C-0817BD4KBS | CN8 | 85044088 |
| Country of Origin | China (CN) | Customs Tariff Number | 8501520000 |
| Degree of Protection | IP65 | Flange Size Range | 130 mm |
| Frame Size | A | Global Commercial Alias | HDS130C-0817BD4KBS |
| Gross Weight | 10.1 kg | Input Voltage (Uin) | 400 V |
| Invoice Description | HDS series motor, 400 VAC, flange size 130 mm, high inertia, 1.7 kW, multi-turn Hiperface, key, brake, seal | Made To Order | No |
| Maximum Peak Current | 29.5 A | Maximum Peak Torque | 24 N·m |
| Maximum Speed | 4000 r/min | Minimum Order Quantity | 1 piece |
| Motor Power AC-3 | 1.7 kW | Number of Phases | 3 |
| Order Multiple | 1 piece | Package Level 1 Depth / Length | 380 mm |
| Package Level 1 Height | 231 mm | Package Level 1 Units | 1 carton |
| Package Level 1 Width | 190 mm | Product Name | HDS motor |
| Product Net Depth / Length | 257 mm | Product Net Height | 170 mm |
| Product Net Weight | 9.45 kg | Product Net Width | 130 mm |
| Product Type | HDS_servo_motor | Quote Only | No |
| Rated Output Current | 7.7 A | Rated Speed | 2000 r/min |
| Rated Torque | 8 N·m | Replaced Product ID (OLD) | 3ABD00024309 |
| Selling Unit of Measure | piece | Shaft Diameter | 24 mm |
| Shaft Length | 50 mm | Short Description | HDS series motor, 400 VAC, flange size 130 mm, high inerita, 1.7 kW, multi-turn Hiperface, key, brake, seal |
| Stocked At (Warehouses) | Zhengzhou, China Beijing, China Shanghai, China Beijing, China | Two Speed Motor | No |
| UNSPSC | 26101109 | WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope | Manufacturer ID | 3ABD00049769 |
Specifications may be subject to change without notice
