Product Model

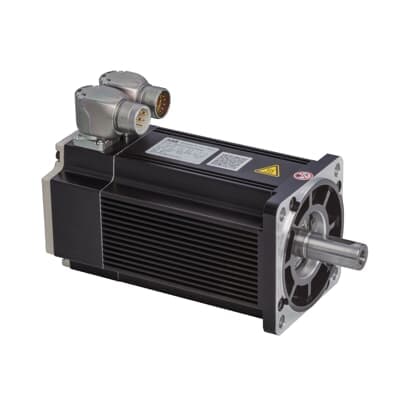

HDS100-0619AMKNS
Key Features
- 1High-efficiency DC drive motor with 10.5 A rated output current.
- 2Rated speed of 3000 r/min for precise control.
- 36 N·m rated torque for robust performance.
- 4Equipped with high-resolution feedback for accurate positioning.
- 5100% original brand from ABB, ensuring reliability and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| ABB Type Designation | HDS100-0619AMKNS | CN8 | 85044088 |
| Country of Origin | Finland (FI) | Customs Tariff Number | 8501520000 |
| Degree of Protection | IP65 | Flange Size Range | 100 mm |
| Frame Size | A | Global Commercial Alias | HDS100-0619AMKNS |
| Gross Weight | 5.97 kg | Input Voltage (Uin) | 230 V |
| Invoice Description | HDS series motor, 230 VAC, flange size 100 mm, low inertia, 1.9 kW, multi-turn SmartABS, key, no brake, seal | Made To Order | No |
| Maximum Peak Current | 39.5 A | Maximum Peak Torque | 18 N·m |
| Maximum Speed | 4000 r/min | Minimum Order Quantity | 1 piece |
| Motor Power AC-3 | 1.9 kW | Number of Phases | 3 |
| Order Multiple | 1 piece | Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Height | 187 mm | Package Level 1 Units | 1 carton |
| Package Level 1 Width | 165 mm | Product Name | HDS motor |
| Product Net Depth / Length | 277.5 mm | Product Net Height | 140 mm |
| Product Net Weight | 5.51 kg | Product Net Width | 100 mm |
| Product Type | HDS_servo_motor | Quote Only | No |
| Rated Output Current | 10.5 A | Rated Speed | 3000 r/min |
| Rated Torque | 6 N·m | Replaced Product ID (OLD) | 3ABD00024309 |
| Selling Unit of Measure | piece | Shaft Diameter | 19 mm |
| Shaft Length | 40 mm | Short Description | HDS series motor, 230 VAC, flange size 100 mm, low inerita, 1.9 kW, multi-turn SmartABS, key, no brake, seal |
| Stocked At (Warehouses) | Zhengzhou, China Beijing, China Shanghai, China Beijing, China | Two Speed Motor | No |
| UNSPSC | 26101109 | WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope | Manufacturer ID | 3ABD00049460 |
Specifications may be subject to change without notice
