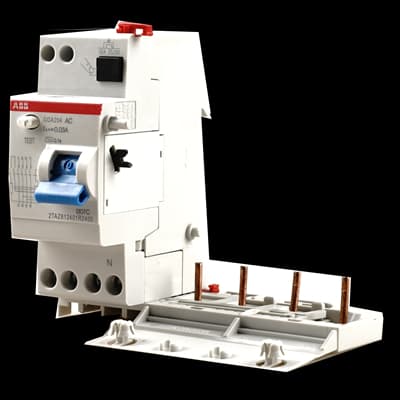

Product Model
GDA204 A-40/0.03
Key Features
- 1Advanced Earth Fault Protection: Ensures protection against sinusoidal alternating earth faults.
- 2Compact Design: Ideal for assembly with MCBs S200 series, offering a space-efficient solution.
- 3Enhanced Safety Features: Provides reliable and efficient protection in various industrial settings.
- 4Wide Global Availability: Available in multiple regions, including Europe, Americas, and Asia.
- 5Comprehensive Warranty: Backed by a 12-month warranty from the date of delivery and 6 months after repair.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type of Residual Current | Type A | Rated Voltage (Ur) | 230...400 V |
| Rated Insulation Voltage (Ui) | 500 V | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Current (In) | 40 A | Rated Residual Current | 30 mA |
| Maximum Surge Current | 0.25 kA | Leakage Current Type | A |
| Rated Frequency (f) | 50 ⦠60 Hz | Number of Poles | 4 |
| Operating Characteristic | Instantaneous | Connecting Capacity | Rigid 16 ⦠16 mm² Flexible 16 ⦠16 mm² |
| Ambient Temperature | -25...55 °C | Ambient Air Temperature | Operation -25...55 °C |
| Degree of Protection | IP2X | Pollution Degree | 2 |
| Short-Circuit Current Rating (SCCR) | 0.03 ... 0.03 A | Product Net Width | 0.105 m |
| Product Net Height | 0.093 m | Product Net Depth / Length | 0.069 m |
| Product Net Weight | 0.164 kg | ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module |
| ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
| eClass | V11.0 : 27142210 | Object Classification Code | F |
| Manufacturer ID | 2TAZ810404R2400 |
Specifications may be subject to change without notice
