Product Model

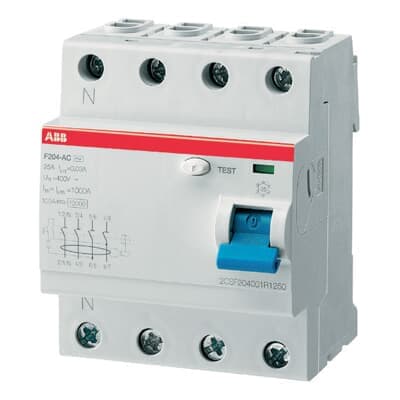

F204 AC-63/0.1-L
Key Features
- 1Advanced Fault Current Protection: Safeguards against earth fault currents and indirect contacts.
- 2High Sensitivity: Trip current of 100 mA for precise detection of faults.
- 3Durable Design: Built with robust materials for extended product lifetime.
- 4Compliant with Standards: Meets IEC/EN 61008 standards for reliability and performance.
- 5Easy Installation: Compatible with DIN rail mounting for seamless integration into your electrical system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC/EN 61008 | Type of Residual Current | Type AC |
| Rated Voltage (Ur) | 230/400 V | Rated Operational Voltage | 230 / 400 V AC |
| Rated Insulation Voltage (Ui) | 500 V | Test Voltage (Ut) | 195-440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV | Input Voltage Type | AC |
| Rated Current (In) | 63 A | Rated Residual Current | 100 mA |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA | Maximum Surge Current | 0.25 kA |
| Leakage Current Type | AC | Frequency (f) | 50/60 Hz |
| Rated Frequency (f) | 50 ⦠60 Hz | Power Loss | at Rated Operating Conditions per Pole 4.4 W |
| Power Supply Connection | Arbitrary | Electrical Endurance | 10000 cycle |
| Number of Poles | 4 | Number of Modular Spacings per DIN Rail | 4 |
| Operating Characteristic | Instantaneous | Position of Neutral Terminals | Left |
| Tightening Torque | 2.8 N·m | Accessory Type | Auxiliary contact Signal / auxiliary contact Shunt trip Auto re-closing units Motor operating device Overvoltage release Undervoltage release |
| Mounting Type | DIN-Rail | Options Provided | None |
| Mounting Position | Any | Accessories Available | Yes |
| Connecting Capacity | Busbar 10 mm² Rigid 25 ... 25 mm² Flexible 25 ... 25 mm² | Rated Cross-Section | 4 - Multi-Wired 0...25 mm² 1 - Solid-Core 25...25 mm² |
| Wire Stripping Length | 12 mm | Terminal Type | Screw Terminals |
| Ambient Air Temperature | Operation -25 ... 55 °C Storage -40 ... 70 °C | Degree of Protection | IP2X |
| Pollution Degree | 2 | Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms | Environmental Information | Refer to RoHS |
| Short-Circuit Current Rating (SCCR) | 100 mA | Width in Number of Modular Spacings | 4 |
| Product Net Width | 70 mm | Product Net Height | 85 mm |
| Product Net Depth / Length | 69 mm | Product Net Weight | 360 g |
| Built-In Depth (t2) | 69 mm | ETIM 8 | EC000003 - Residual current circuit breaker (RCCB) |
| ETIM 9 | EC000003 - Residual current circuit breaker (RCCB) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
| eClass | V11.0 : 27142201 | IDEA Granular Category Code (IGCC) | 4875 >> Residual current circuit breaker (RCCB) |
| Object Classification Code | F | Manufacturer ID | 2CSF204023R2630 |
