Product Model

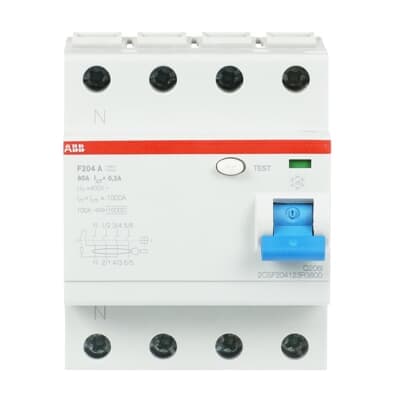

F204 A-80/0.3-L
Key Features
- 1Protects against fault currents to earth with a rated residual current of 300 mA.
- 2Built with a rated insulation voltage of 500 V and a rated impulse withstand voltage of 4 kV.
- 3Mounts on DIN rail with a built-in depth of 69 mm, suitable for multi-wired conductors up to 35 mm².
- 4Handles short-circuit breaking capacity of 1 kA and surge current capacity of 0.25 kA.
- 5Meets IEC 61008 standards, ensuring reliable operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC/EN 61008 | Type of Residual Current | Type A |
| Rated Voltage (Ur) | 230/400 V | Rated Operational Voltage | 230 / 400 V AC |
| Rated Insulation Voltage (Ui) | 500 V | Test Voltage (Ut) | 195-440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV | Input Voltage Type | AC |
| Rated Current (In) | 80 A | Rated Residual Current | 300 mA |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA | Leakage Current Type | A |
| Frequency (f) | 50/60 Hz | Rated Frequency (f) | 50 ⦠60 Hz |
| Power Loss | at Rated Operating Conditions per Pole 5.3 W | Power Supply Connection | Arbitrary |
| Electrical Endurance | 10000 cycle | Number of Poles | 4 |
| Number of Modular Spacings per DIN Rail | 4 | Operating Characteristic | Instantaneous |
| Position of Neutral Terminals | Left | Tightening Torque | 2.8 N·m |
| Accessory Type | Auxiliary contact Signal / auxiliary contact Shunt trip Auto re-closing units Motor operating device Overvoltage release Undervoltage release | Mounting Type | DIN-Rail |
| Options Provided | None | Mounting Position | Any |
| Accessories Available | Yes | Connecting Capacity | Busbar 10 mm² Rigid 35 ... 35 mm² Flexible 35 ... 35 mm² |
| Rated Cross-Section | 4 - Multi-Wired 0...35 mm² 1 - Solid-Core 35...35 mm² | Wire Stripping Length | Top 12.7 mm Bottom 14.9 mm |
| Terminal Type | Screw Terminals | Ambient Air Temperature | Operation -25 ... 55 °C Storage -40 ... 70 °C |
| Degree of Protection | IP2X | Pollution Degree | 2 |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz | Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Environmental Information | Refer to RoHS | Short-Circuit Current Rating (SCCR) | 300 mA |
| Width in Number of Modular Spacings | 4 | Product Net Width | 70 mm |
| Product Net Height | 85 mm | Product Net Depth / Length | 69 mm |
| Product Net Weight | 380 g | Built-In Depth (t2) | 69 mm |
| ETIM 8 | EC000003 - Residual current circuit breaker (RCCB) | ETIM 9 | EC000003 - Residual current circuit breaker (RCCB) |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
| CN8 | 85363030 | eClass | V11.0 : 27142201 |
| IDEA Granular Category Code (IGCC) | 4875 >> Residual current circuit breaker (RCCB) | Object Classification Code | F |
| Manufacturer ID | 2CSF204123R3800 |
Specifications may be subject to change without notice
