Product Model

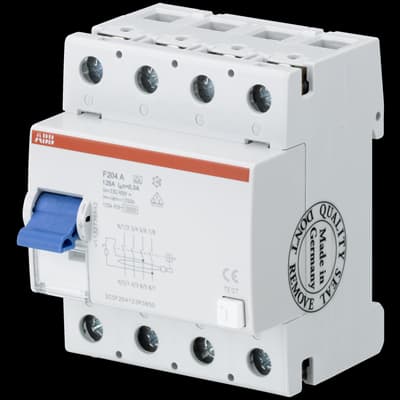

F204A-125/0.03AP-R/L
Key Features
- 1Comprehensive Protection: Ensures safety against fault currents to earth, protecting people and installations.
- 2IEC/EN 61008 Compliance: Meets international standards for residual current circuit breakers.
- 3High Immunity: Offers high immunity against unwanted trippings, ensuring continuity in service.
- 4Versatile Connectivity: Compatible with various busbar sizes (10 mm² to 35 mm²) and multi-wired configurations.
- 5Environmental Compliance: Compliant with EU Directive 2011/65/EU and RoHS standards for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type of Residual Current | Type A | Rated Voltage (Ur) | 230/400 V |
| Rated Operational Voltage | 230 / 400 V AC | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 500 V |
| Test Voltage (Ut) | 250-440 V | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Input Voltage Type | AC | Rated Current (In) | 125 A |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA | Frequency (f) | 50/60 Hz |
| Rated Frequency (f) | 50 Hz | Power Loss | at Rated Operating Conditions per Pole 7.5 W |
| Number of Poles | 4 | Number of Modular Spacings per DIN Rail | 4 |
| Operating Characteristic | Instantaneous (APR High Immunity) | Tightening Torque | 2.8 N·m |
| Accessory Type | Signal/Auxiliary contact Motor operating device | Mounting Type | DIN-Rail |
| Options Provided | None | Mounting Position | Any |
| Accessories Available | Yes | Rated Cross-Section | 1 - Solid-Core 1.5 ... 50 mm² |
| Wire Stripping Length | 12 mm | Terminal Type | Screw Terminals |
| Ambient Air Temperature | Operation -25 ... 40 °C Storage -40 ... 70 °C | Degree of Protection | IP20 |
| Pollution Degree | 2 | Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms | Width in Number of Modular Spacings | 4 |
| Product Net Width | 72 mm | Product Net Height | 85 mm |
| Product Net Depth / Length | 69.5 mm | Product Net Weight | 500 g |
| Built-In Depth (t2) | 69 mm | ETIM 8 | EC000003 - Residual current circuit breaker (RCCB) |
| ETIM 9 | EC000003 - Residual current circuit breaker (RCCB) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
| eClass | V11.0 : 27142201 | IDEA Granular Category Code (IGCC) | 4875 >> Residual current circuit breaker (RCCB) |
| Object Classification Code | Q | Manufacturer ID | 2CSF204423R1950 |
Specifications may be subject to change without notice
