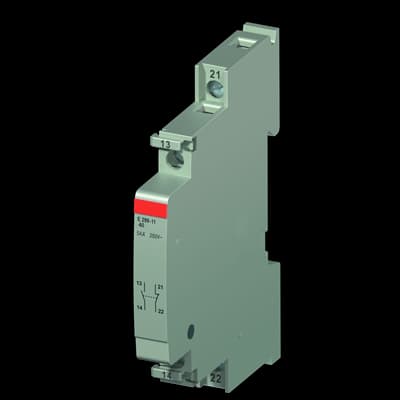

Product Model
E299-11-60
Key Features
- 1Snap-on design for easy installation.
- 2Dual integrated switches for individual reporting.
- 3Compatible with pulse switches and installation relays.
- 4Meets IEC/EN 60669-1 and IEC/EN 60669-2-2 standards.
- 5Ideal for harsh environments with RoHS compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC 60669-1 IEC 60669-2-2 | Function | Auxiliary Contact |
| Supply Voltage | 250 ⦠250 V | Rated Control Supply Voltage (Us) | 250 V AC |
| Input Voltage Type | AC | Rated Current (In) | 5 A |
| Current Rating, Main Switch | 5 A | Maximum Control Current DC | 5 A |
| Frequency (f) | Control Voltage 1 60 Hz | Rated Frequency (f) | 60 Hz |
| Minimum Switching Capacity | 24 V 10 mA | Power Loss | 0.1 W |
| Number of Contacts NC | 1 | Number of Contacts NO | 1 |
| Number of Main Contacts NC | 0 | Number of Main Contacts NO | 0 |
| Number of Auxiliary Contacts NC | 1 | Number of Auxiliary Contacts NO | 1 |
| Tightening Torque | 1.2 - 1.5 N·m | Mounting Type | DIN-Rail |
| RAL Number | RAL 7035 - Light Grey | Color | Grey |
| Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C | Width in Number of Modular Spacings | 0.5 |
| Product Net Width | 9 mm | Product Net Height | 85 mm |
| Product Net Depth / Length | 58 mm | Product Net Weight | 45 g |
| Dimension Diagram | 9AKK107992A6182 | ETIM 8 | EC000188 - Latching relay |
| ETIM 9 | EC000188 - Latching relay | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85364930 |
| eClass | V11.0 : 27142306 | Object Classification Code | K |
| Manufacturer ID | 2CCA704342R0001 |
Specifications may be subject to change without notice
