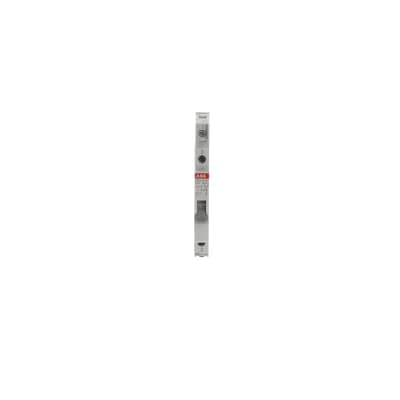

Product Model
E214-16-101
Key Features
- 1High reliability with up to 10,000 mechanical cycles.
- 2Compact and elegant design suitable for any industrial environment.
- 3Simple handling and easy mounting for optimal functionality.
- 4Safe connection due to cage clamp technology.
- 5Compliance with international standards including DIN EN 60669-1 and VDE 0632 Part 1.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | EN60669-1 VDE0632-1 IEC60068-2-2 IEC60068-2-1 IEC60068-2-38 UL508 | Rated Voltage (Ur) | Minimum 250 V |
| Rated Operational Voltage | acc. to EN 250 V AC acc. to UL 508 240 V AC | Input Voltage Type | AC |
| Rated Current (In) | 16 A | Rated Service Short-Circuit Breaking Capacity (Ics) | 3 kA |
| Rated Frequency (f) | 50/60 Hz | Power Loss | 0.32 W |
| Number of Contacts CO | 1 | Number of Main Contacts NC | 0 |
| Number of Main Contacts NO | 0 | Number of Auxiliary Contacts CO (SPDT) | 1 |
| Number of Poles | 1P | Tightening Torque | 1.2-1.5 N·m |
| Switch Type | Double Interrupting Contacts | Material of Conductor | Copper |
| Remarks | Sealable in the On and Off positions | Cover Color | Grey |
| Control Element Color | Grey | Connecting Capacity | Solid 1x1â¦6 mm² Solid 2x2.5 mm² Flexible 1x0.75â¦2x2.5 mm² |
| Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C | Degree of Protection | IP20 |
| Environmental Information | 2CCC441003C0201 | Width in Number of Modular Spacings | 0.5 |
| Product Net Width | 9 mm | Product Net Height | 85 mm |
| Product Net Depth / Length | 68 mm | Product Net Weight | 44 g |
| Built-In Depth (t2) | 68 mm | ETIM 8 | EC001545 - Main switch for distribution board |
| ETIM 9 | EC001545 - Main switch for distribution board | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85365053 |
| UNSPSC | 39122214 | eClass | V11.0 : 27142301 |
| IDEA Granular Category Code (IGCC) | 5208 >> Controller switch | Object Classification Code | S |
| Manufacturer ID | 2CCA703025R0001 |
Specifications may be subject to change without notice
