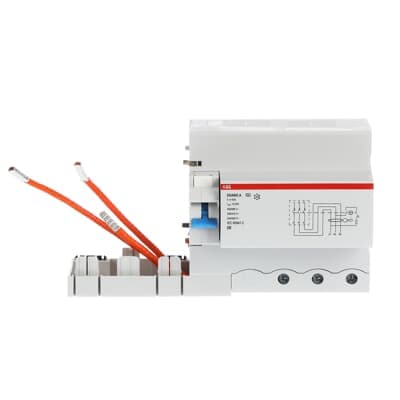

Product Model
DDA803 A-63/0.03
Key Features
- 1High-Performance Protection: Provides robust protection against earth faults with a 63A current rating and 30mA trip sensitivity.
- 2Commercial & Industrial Use: Suitable for both commercial and industrial settings, ensuring reliable operation in various environments.
- 3Instantaneous Break Time: Offers instantaneous break time for quick response to fault conditions.
- 4DIN Rail Mounting: Easy installation with DIN rail mounting, simplifying integration into existing electrical systems.
- 5ABB Brand Quality: Manufactured by ABB, a trusted brand in the electrical industry known for its high-quality products.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC EN 60947-2 Ann. B | Type of Residual Current | Type A |
| Suitable For | S800S S800N S800C S800B | Rated Voltage (Ur) | 400 V AC 415 V AC 690 V AC |
| Rated Operational Voltage | 400/690 V | Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV | Rated Current (In) | 63 A |
| Rated Residual Current | 30 mA | Maximum Surge Current | 0.25 kA |
| Leakage Current Type | A | Rated Frequency (f) | 50 ⦠60 Hz |
| Power Loss | 13.5 W | Number of Poles | 3 |
| Operating Characteristic | Instantaneous | Connecting Capacity | Rigid 6 ⦠50 mm² Flexible 6 ⦠70 mm² |
| Ambient Temperature | -25...60 °C | Ambient Air Temperature | Operation -25...60 °C |
| Degree of Protection | IP2X | Environmental Information | document not needed |
| Short-Circuit Current Rating (SCCR) | 0.03 ... 0.03 A | Width in Number of Modular Spacings | 6.5 |
| Product Net Width | 117 mm | Product Net Height | 108.2 mm |
| Product Net Depth / Length | 82.3 mm | Product Net Weight | 400 g |
| ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module | ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Business |
| CN8 | 85363030 | UNSPSC | 39121601 |
| eClass | V11.0 : 27142210 | IDEA Granular Category Code (IGCC) | 4875 >> Residual current circuit breaker (RCCB) |
| Object Classification Code | F | Manufacturer ID | 2CSB803101R1630 |
Specifications may be subject to change without notice
