Product Model

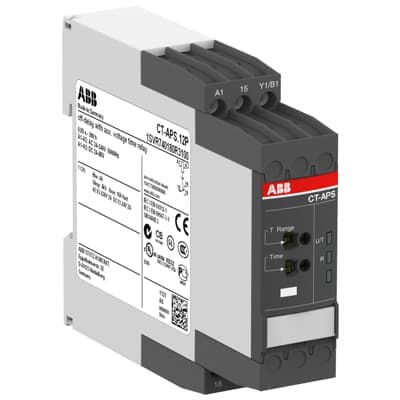

CT-APS.12P
Key Features
- 1Offers OFF-delay functionality with 10 time ranges from 0.05 s to 300 h.
- 2Compatible with 24-48 V DC and 24-240 V AC supply voltages.
- 3Features 1 c/o (SPDT) contact rated at 250 V / 4 A.
- 4Equipped with Easy Connect Technology for tool-free mounting and demounting on DIN-rail.
- 5Meets international standards including UL 508, CAN/CSA C22.2 No.14, and CE certification.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 22.5 mm | Product Net Height | 85.6 mm |
| Product Net Depth / Length | 103.7 mm | Product Net Weight | 0.103 kg |
| Timer Relay Type | OFF-Delay | Time Range | 0.05 s ... 300 h |
| Rated Control Supply Voltage (Us) | 24 ... 240 V AC 24 ... 48 V DC | Rated Operational Voltage | Auxiliary Circuit 250 V |
| Rated Frequency (f) | 50 / 60 Hz DC | Output | 1 c/o (SPDT) contact |
| Terminal Type | Screwless Terminals | Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A | Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A | Minimum Switching Capacity | 12 V 100 mA |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit 4 kV Output Circuit 1 / Output Circuit 2 4 kV | Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 500 V Output Circuit 1 / Output Circuit 2 300 V |
| Degree of Protection | Housing IP50 Terminals IP20 | Overvoltage Category | III |
| Pollution Degree | 3 | Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 6 A Output Circuit NO - F Type Fuses 10 A |
| Electrical Durability | AC-12 100000 cycle | Mechanical Durability | 30000000 cycle |
| Connecting Capacity | Flexible with Ferrule 2x 0.5 ... 1.5 mm² Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² Flexible 2x 0.5 ... 1.5 mm² Rigid 2x 0.5 ... 1.5 mm² | Wire Stripping Length | 8 mm |
| Mounting Position | 1 ... 6 | Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61812-1 UL 508 | Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC |
| Contact Rating UL/CSA | B300 | Connecting Capacity UL/CSA | Flexible 2x 18-16 AWG Rigid 2x 20-16 AWG |
| Pilot Duty UL/CSA | B300 | Flammability According to UL94 | V-0 |
| Ambient Air Temperature | Operation -25 ... +60 °C Storage -40 ... +85 °C | Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Object Classification Code | K | ETIM 7 | EC001439 - Timer relay |
| ETIM 8 | EC001439 - Timer relay | ETIM 9 | EC001439 - Timer relay |
| eClass | V11.0 : 27371605 | UNSPSC | 39122329 |
| E-Number (Finland) | 2712228 | E-Number (Norway) | 4187957 |
| E-Number (Sweden) | 4033140 | Manufacturer ID | 1SVR740180R3100 |
Specifications may be subject to change without notice
