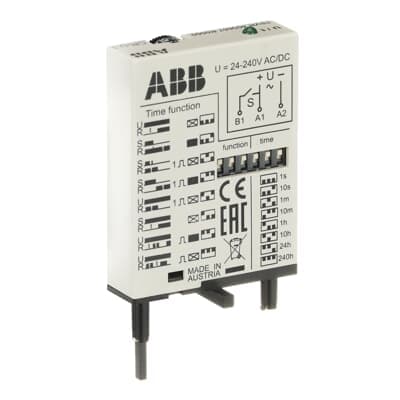

Product Model
CR-U T
Key Features
- 1The CR-U T module provides several timing functions suitable for various industrial applications.
- 2Compatible with 24-240V AC/DC, ensuring flexibility in different electrical environments.
- 3Designed to plug into CR-U2S and CR-U3S sockets, making installation quick and straightforward.
- 4Built with cadmium-free contact material and LED indication for enhanced reliability and visibility.
- 5Meets international standards (CE, EAC) and is supported by ABB’s global network for maintenance and support.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 35 mm | Product Net Height | 47 mm |
| Product Net Depth / Length | 12 mm | Product Net Weight | 0.014 kg |
| Function | Accessory for interface relays CR-U | Sub-Function | Pluggable function module for universal relay sockets |
| Sub-Function 2 | Multifunction time module | Rated Control Supply Voltage (Us) | 24 ... 240 V AC/DC |
| Output | none | Output Signal | none |
| Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61812-1 | Object Classification Code | K |
| ETIM 7 | EC002586 - Accessories for switching relay | ETIM 8 | EC002586 - Accessories/spare parts for switching relay |
| ETIM 9 | EC002586 - Accessories/spare parts for switching relay | eClass | V11.0 : 27371692 |
| UNSPSC | 39122331 | E-Number (Finland) | 2712515 |
| E-Number (Norway) | 4187516 | Manufacturer ID | 1SVR405667R0000 |
Specifications may be subject to change without notice
