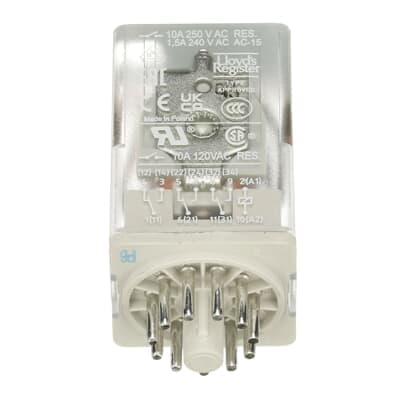

Product Model

CR-U024DC3

Manufacturer

ABB

Key Features

1High-Performance Relays: Designed for industrial applications with robust circular pin terminals.
224V DC Control Supply: Operates with a 24V DC rated control supply voltage.
33 c/o SPDT Contacts: Features 3 c/o (SPDT) output contacts rated at 250V/10A.
4Integrated Test Button: Includes an integrated blue test button for manual actuation and locking of output contacts.
5Durable Construction: Built to handle tough, repetitive-use applications with durable construction.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Product Net Width	35 mm	Product Net Height	54.4 mm
Product Net Depth / Length	35 mm	Product Net Weight	0.083 kg
Function	Pluggable universal interface relay CR-U	Sub-Function	Relay w/o built in LED
Rated Control Supply Voltage (Us)	24 V DC	Rated Operational Voltage	250 V AC
Output	3 c/o (SPDT) contacts	Output Signal	250 V / 10 A
Terminal Type	Pin	Rated Operational Current AC-12 (Ie)	(230 V) 10 A
Rated Operational Current AC-15 (Ie)	(120 V) 3 A (230 V) 1.5 A	Rated Operational Current DC-12 (Ie)	(24 V) 10 A
Rated Operational Current DC-13 (Ie)	(24 V) 2 A (250 V) 0.1 A	Rated Insulation Voltage (Ui)	250 V
Degree of Protection	IP40	Mounting Position	1
Standards	CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61810-1 UL 508	Maximum Operating Voltage UL/CSA	300 V AC
Contact Rating UL/CSA	B300	Pilot Duty UL/CSA	B300
Flammability According to UL94	HB	Ambient Air Temperature	Operation -40 ... +70 Â°C Storage -40 ... +85 Â°C
Maximum Operating Altitude Permissible	Without Derating 2000 m	Object Classification Code	K
ETIM 7	EC001437 - Switching relay	ETIM 8	EC001437 - Switching relay
ETIM 9	EC001437 - Switching relay	eClass	V11.0 : 27371601
UNSPSC	39122331	E-Number (Finland)	2712769
E-Number (Norway)	4187465	E-Number (Sweden)	4005422
Manufacturer ID	1SVR405622R1000

Specifications may be subject to change without notice
