Product Model

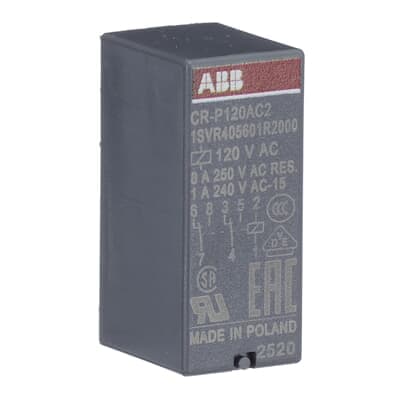

CR-P120AC2
Key Features
- 1Compact Design: Ideal for space-saving in control panels with a compact size.
- 2High Reliability: Operates with a 120V AC rated control supply voltage and has 2 c/o (SPDT) contacts rated at 250V/8A.
- 3Dust and Water Protection: IP67 degree of protection against dust and water, including immersion up to one meter of water.
- 4Versatile Mounting Options: Suitable for direct mounting on a printed circuit board or use with ABB's sockets.
- 5Accessories Available: Includes standard sockets, logical sockets, pluggable function modules, holder, and marker as accessories.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 12.7 mm | Product Net Height | 15.7 mm |
| Product Net Depth / Length | 29 mm | Product Net Weight | 0.014 kg |
| Function | Pluggable pcb interface relay CR-P | Sub-Function | Relay w/o built in LED |
| Rated Control Supply Voltage (Us) | 120 V AC | Rated Operational Voltage | 400 V AC |
| Rated Frequency (f) | 50 / 60 Hz | Output | 2 c/o (SPDT) contacts |
| Output Signal | 250 V / 8 A | Terminal Type | Soldering Pins |
| Rated Operational Current AC-12 (Ie) | (230 V) 8 A | Rated Operational Current AC-15 (Ie) | (120 V) 3 A (230 V) 1.5 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 8 A | Rated Operational Current DC-13 (Ie) | (24 V) 2 A (250 V) 0.1 A |
| Rated Insulation Voltage (Ui) | 400 V | Degree of Protection | IP67 |
| Mounting Position | 1 | Standards | IEC/EN 61810-1 |
| Maximum Operating Voltage UL/CSA | 300 V AC | Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | V-0 | Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +85 °C |
| Maximum Operating Altitude Permissible | Without Derating 2000 m | Object Classification Code | K |
| ETIM 7 | EC001437 - Switching relay | ETIM 8 | EC001437 - Switching relay |
| ETIM 9 | EC001437 - Switching relay | eClass | V11.0 : 27371601 |
| UNSPSC | 39122331 | E-Number (Finland) | 2712751 |
| E-Number (Norway) | 4187344 | Manufacturer ID | 1SVR405601R2000 |
