Product Model

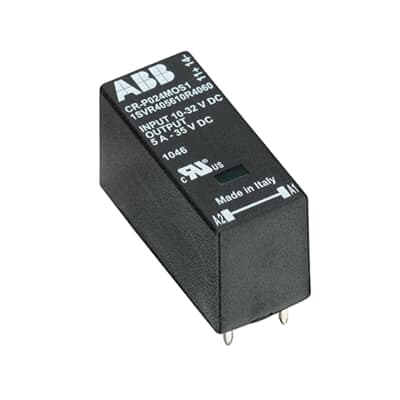

CR-P024MOS1
Key Features
- 1Designed with cadmium-free contact material for long-lasting performance.
- 2Handles 24 V DC input with a 5 A output, ensuring precise control.
- 3Includes LED indication and reverse polarity protection for enhanced safety.
- 4Ideal for PCB, surface, or DIN rail mounting in various applications.
- 5Compatible with a wide range of control supply voltages, including 12 V and 48 V DC.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 12.7 mm | Product Net Height | 15.7 mm |
| Product Net Depth / Length | 29 mm | Product Net Weight | 0.011 kg |
| Function | Pluggable pcb optocoupler CR-P | Rated Control Supply Voltage (Us) | 10 ... 32 V DC |
| Output | MOSFET | Output Signal | 35VDC / 5A |
| Degree of Protection | IP67 | Standards | IEC/EN 62314 |
| Ambient Air Temperature | Operation -20 ... +50 °C Storage -20 ... +70 °C | ETIM 7 | EC001504 - Optocoupler |
| ETIM 8 | EC001504 - Optocoupler | ETIM 9 | EC001504 - Optocoupler |
| eClass | V11.0 : 27371604 | UNSPSC | 32111705 |
| Manufacturer ID | 1SVR405610R4060 |
Specifications may be subject to change without notice
