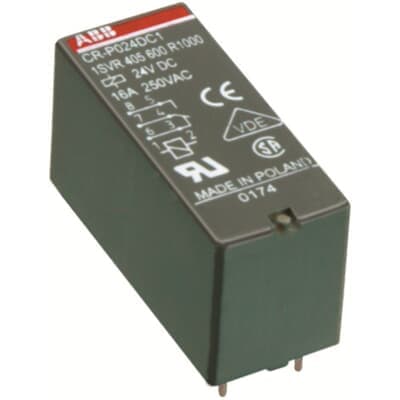

Product Model
CR-P012AC2
Key Features
- 1Designed for industrial use with robust construction.
- 22 c/o (SPDT) contacts for versatile output configurations.
- 3Dimensions: 13 mm x 16 mm x 29 mm, perfect for space-constrained setups.
- 4Meets EU Directive 2011/65/EU for RoHS compliance.
- 5Compatible with standard sockets, logic sockets, and pluggable function modules.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 13 mm | Product Net Height | 16 mm |
| Product Net Depth / Length | 29 mm | Product Net Weight | 0.014 kg |
| Function | Pluggable pcb interface relay CR-P | Rated Control Supply Voltage (Us) | 12 V AC |
| Rated Operational Voltage | 400 V AC | Output | 2 c/o (SPDT) contacts |
| Output Signal | 250 V / 8 A | Terminal Type | Soldering Pins |
| Rated Operational Current AC-12 (Ie) | (230 V) 8 A | Rated Operational Current AC-15 (Ie) | (120 V) 3 A (230 V) 1.5 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 8 A | Rated Operational Current DC-13 (Ie) | (24 V) 2 A (250 V) 0.1 A |
| Rated Insulation Voltage (Ui) | 400 V | Degree of Protection | IP67 |
| Mounting Position | 1 | Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61810-1 UL 508 |
| Maximum Operating Voltage UL/CSA | 300 V AC | Contact Rating UL/CSA | B300 |
| Pilot Duty UL/CSA | B300 | Flammability According to UL94 | V-0 |
| Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +85 °C | Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Object Classification Code | K | ETIM 7 | EC001437 - Switching relay |
| ETIM 8 | EC001437 - Switching relay | ETIM 9 | EC001437 - Switching relay |
| eClass | V11.0 : 27371601 | UNSPSC | 39122331 |
| Manufacturer ID | 1SVR405601R0200 |
Specifications may be subject to change without notice
