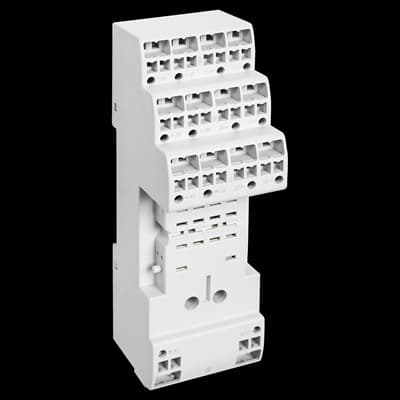

Product Model
CR-M4LP
Key Features
- 1Simplify cabling with tool-free push-in terminals.
- 2Ensures secure and reliable connections even in applications with shock or vibrations.
- 3No specialized training or tools required, reducing installation time by up to 50%.
- 4Each terminal pin allows for two wires, making cabling and bridging easier.
- 5Meets UL 508, CAN/CSA C22.2 No.14, and IEC/EN 63000 standards with a flammability class V-0 according to UL94.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 30.6 mm | Product Net Height | 42.5 mm |
| Product Net Depth / Length | 98.4 mm | Product Net Weight | 0.065 kg |
| Function | Accessory for interface relays CR-M | Sub-Function | Socket for miniature relays |
| Sub-Function 2 | Logical socket for miniature relay 2 c/o or 4 c/o | Rated Operational Voltage | 250 V |
| Output Signal | 250 V / 6 A | Terminal Type | Push-in Spring Terminals |
| Rated Insulation Voltage (Ui) | 2000 V | Wire Stripping Length | 10 mm |
| Recommended Screw Driver | 2.5 | Mounting Position | 1 |
| Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61984 UL 508 | Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 2x 20-17 AWG Rigid 2x 20-16 AWG Stranded 2 x 20-16 AWG |
| Flammability According to UL94 | V-0 | Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +70 °C |
| Maximum Operating Altitude Permissible | 2000 m | Object Classification Code | K |
| ETIM 7 | EC001456 - Relay socket | ETIM 8 | EC001456 - Relay socket |
| ETIM 9 | EC001456 - Relay socket | eClass | V11.0 : 27371603 |
| UNSPSC | 39122335 | E-Number (Norway) | 4187816 |
| Manufacturer ID | 1SVR405651R6110 |
Specifications may be subject to change without notice
